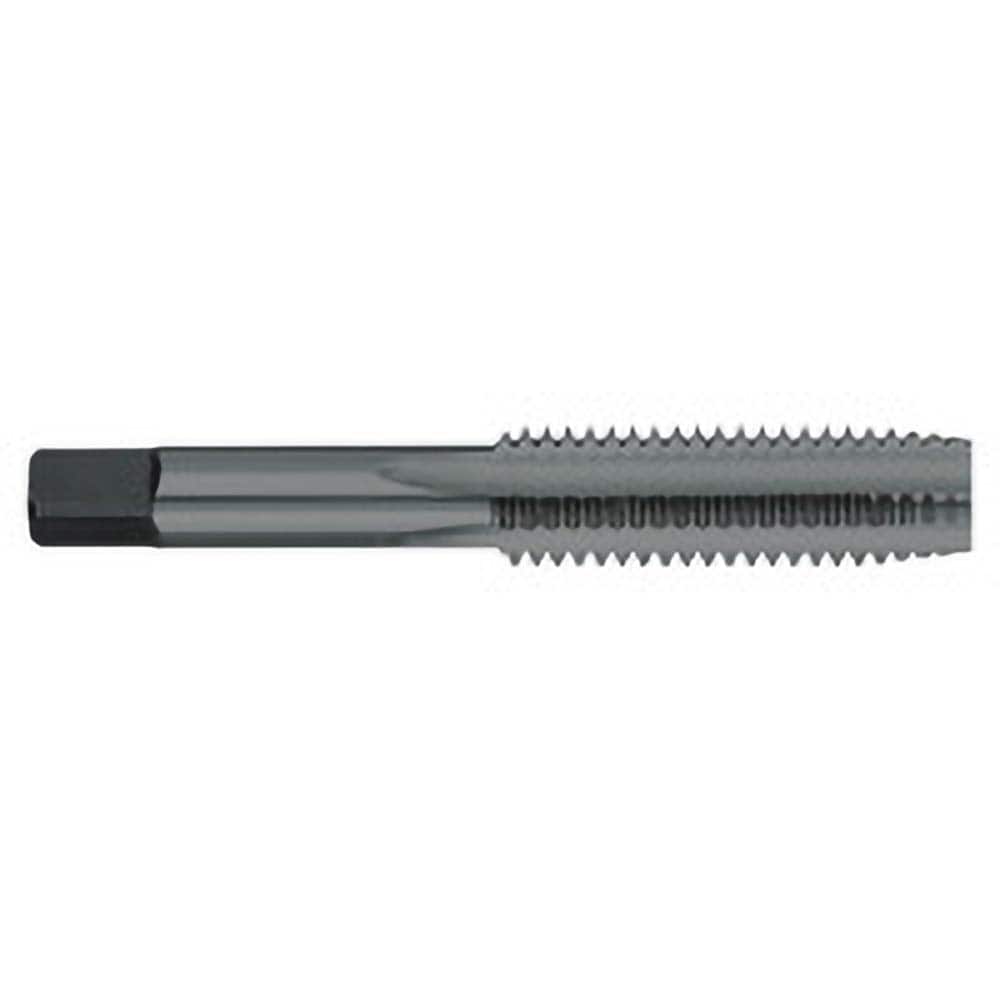

Titan USA - 7/16-20 Bottoming RH 2B/3B H3 Uncoated High Speed Steel 4-Flute Straight Flute Hand Tap
Item #: 07969959
Brand: Titan USA
Model #: TT90486NS
Product Specifications
| Tap Type | Standard Hand Tap |
| Thread Size (Inch) | 7/16-20 |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | UNF |
| Overall Length (Decimal Inch) | 3.1563 |
| Series/List | 727 |
| Thread Length (Decimal Inch) | 1.4375 |
| Thread Length (Inch) | 1-7/16 |
| Square Length (Inch) | 0.4063 |
| Square Size (Decimal Inch) | 0.2420 |
