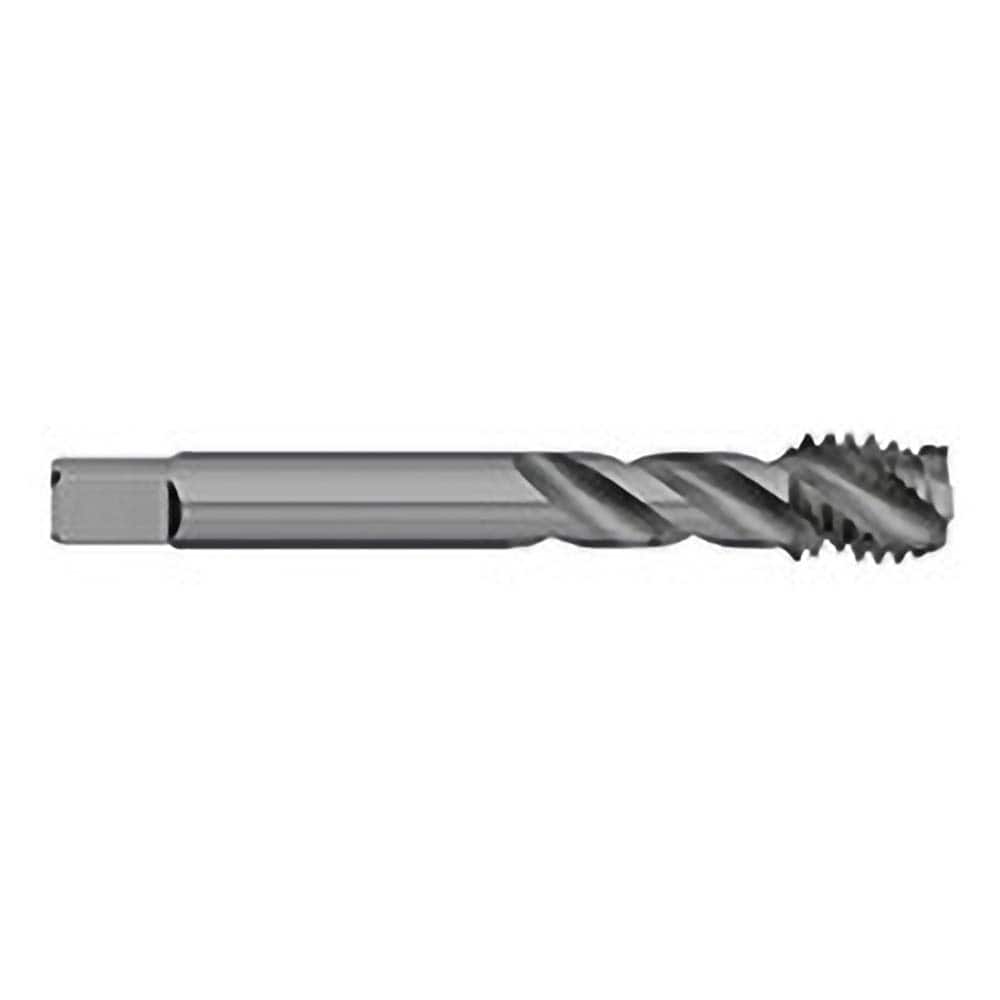

Titan USA - Spiral Flute Taps; Thread Size (Inch): 1/2-13 ; Chamfer: Semi-Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H5 ; Number of Flutes: 3 ; Material: Powdered Metal
Item #: 07966393
Brand: Titan USA
Model #: TT97571
Product Specifications
Spiral Flute Taps; Thread Size (Inch): 1/2-13 ; Chamfer: Semi-Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H5 ; Number of Flutes: 3 ; Material: Powdered Metal
| Thread Size (Inch) | 1/2-13 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 2B/3B |
| Thread Limit | H5 |
| Number of Flutes | 3 |
| Material | Powdered Metal |
| Finish/Coating | Steam Oxide |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Helix Angle | 45 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 0.6400 |
| Thread Length (Inch) | 41/64 |
| Flute Type | Spiral |
| Series/List | 799 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Length (Inch) | 7/16 |
