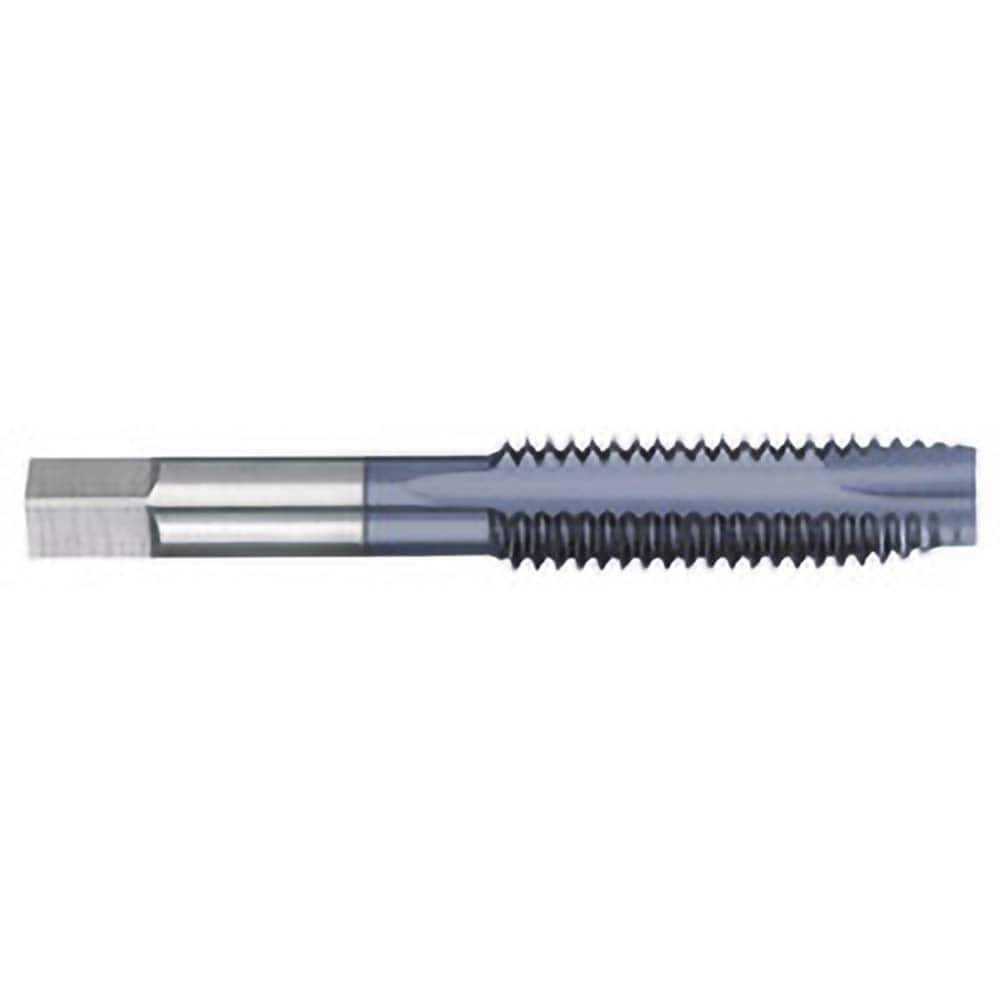

Titan USA - Spiral Point Taps; Thread Size (Inch): 1/4-20 ; Number of Flutes: 2 ; Chamfer: Plug ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Finish/Coating: AlTiN
Item #: 07966344
Brand: Titan USA
Model #: TT98011
Product Specifications
Spiral Point Taps; Thread Size (Inch): 1/4-20 ; Number of Flutes: 2 ; Chamfer: Plug ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Finish/Coating: AlTiN
| Thread Size (Inch) | 1/4-20 |
| Number of Flutes | 2 |
| Chamfer | Plug |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Finish/Coating | AlTiN |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.0000 |
| Thread Length (Inch) | 1 |
| Series/List | 762 |
| Shank Diameter (Decimal Inch) | 0.2550 |
| Square Length (Inch) | 5/16 |
| Square Size (Decimal Inch) | 0.1910 |
