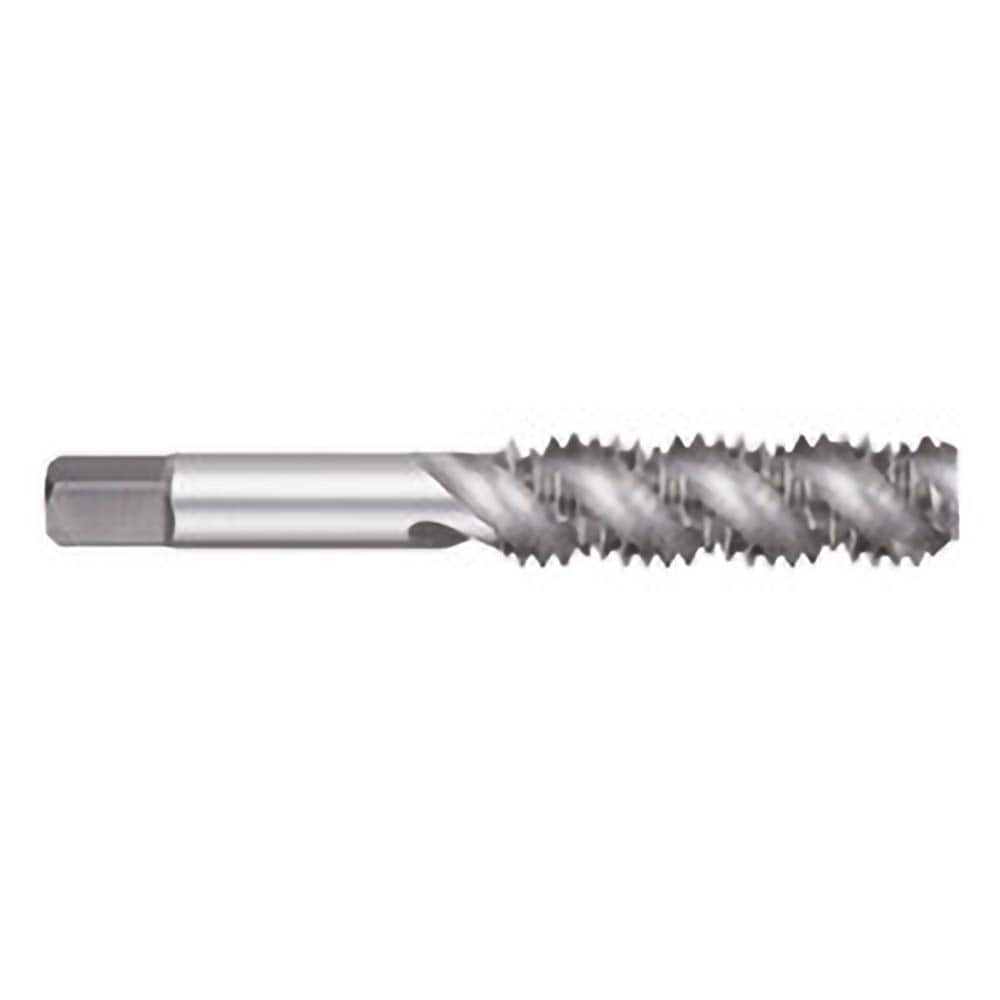

Titan USA - Spiral Flute Taps; Thread Size (Inch): #12-28 ; Chamfer: Semi-Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Number of Flutes: 3 ; Material: High Speed Steel
Item #: 07963838
Brand: Titan USA
Model #: TT76127
Product Specifications
Spiral Flute Taps; Thread Size (Inch): #12-28 ; Chamfer: Semi-Bottoming ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Number of Flutes: 3 ; Material: High Speed Steel
| Thread Size (Inch) | #12-28 |
| Chamfer | Semi-Bottoming |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Number of Flutes | 3 |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Overall Length (Decimal Inch) | 2.3750 |
| Overall Length (Inch) | 2-3/8 |
| Helix Angle | 52 |
| Thread Standard | UNF |
| Thread Length (Decimal Inch) | 0.9375 |
| Thread Length (Inch) | 15/16 |
| Flute Type | Spiral |
| Series/List | 761 |
| Shank Diameter (Decimal Inch) | 0.2200 |
| Square Length (Inch) | 0.2813 |
