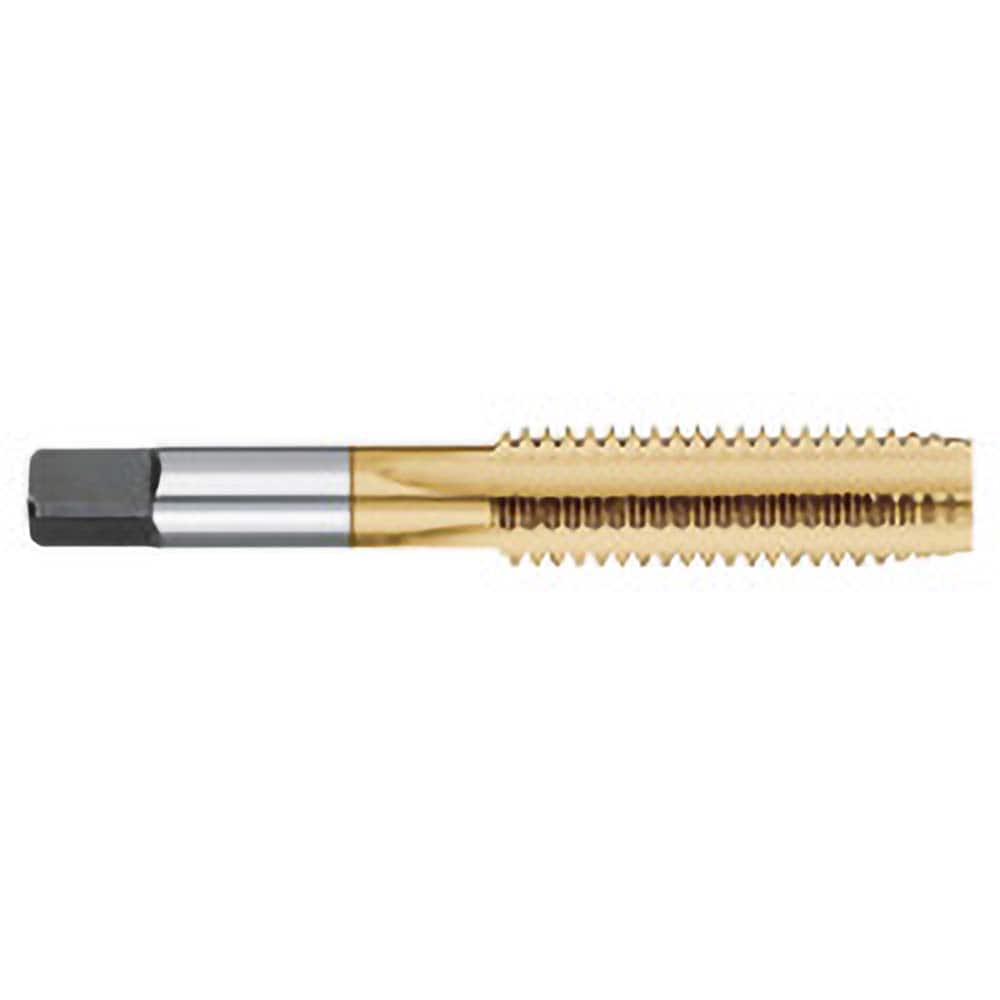

Titan USA - M3x0.50 Bottoming RH 6H D3 TiN High Speed Steel 3-Flute Straight Flute Hand Tap
Item #: 07959596
Brand: Titan USA
Model #: TT75714
Product Specifications
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M3x0.50 |
| Class of Fit | 6H |
| Thread Limit | D3 |
| Number of Flutes | 3 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 1.9375 |
| Overall Length (Inch) | 1-15/16 |
| Series/List | 757 |
| Thread Length (Decimal Inch) | 0.6250 |
| Thread Length (Inch) | 5/8 |
| Square Length (Inch) | 3/16 |
| Square Size (Decimal Inch) | 0.1100 |
