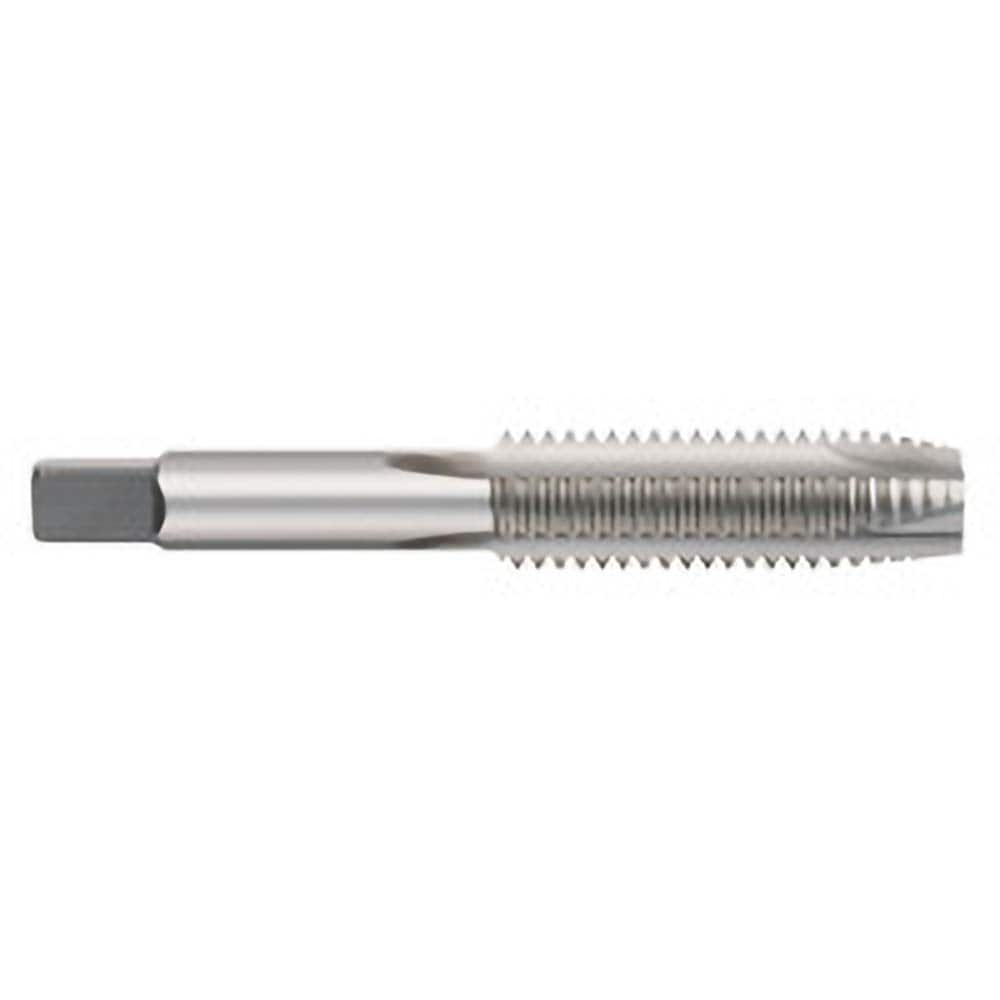

Titan USA - Spiral Point Taps; Thread Size (Inch): 1/2-13 ; Number of Flutes: 3 ; Chamfer: Plug ; Thread Limit: H11 ; Finish/Coating: Uncoated ; Material: High Speed Steel
Item #: 07957780
Brand: Titan USA
Model #: TT91786
Product Specifications
Spiral Point Taps; Thread Size (Inch): 1/2-13 ; Number of Flutes: 3 ; Chamfer: Plug ; Thread Limit: H11 ; Finish/Coating: Uncoated ; Material: High Speed Steel
| Thread Size (Inch) | 1/2-13 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Thread Limit | H11 |
| Finish/Coating | Uncoated |
| Material | High Speed Steel |
| Through Coolant | NonThrough Coolant |
| Thread Direction | Right Hand |
| Overall Length (Decimal Inch) | 3.3750 |
| Overall Length (Inch) | 3-3/8 |
| Amount Oversize (Decimal Inch) | 0.005 |
| Oversize | Yes |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.6563 |
| Series/List | 764 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Square Length (Inch) | 7/16 |
| Square Size (Decimal Inch) | 0.2750 |
