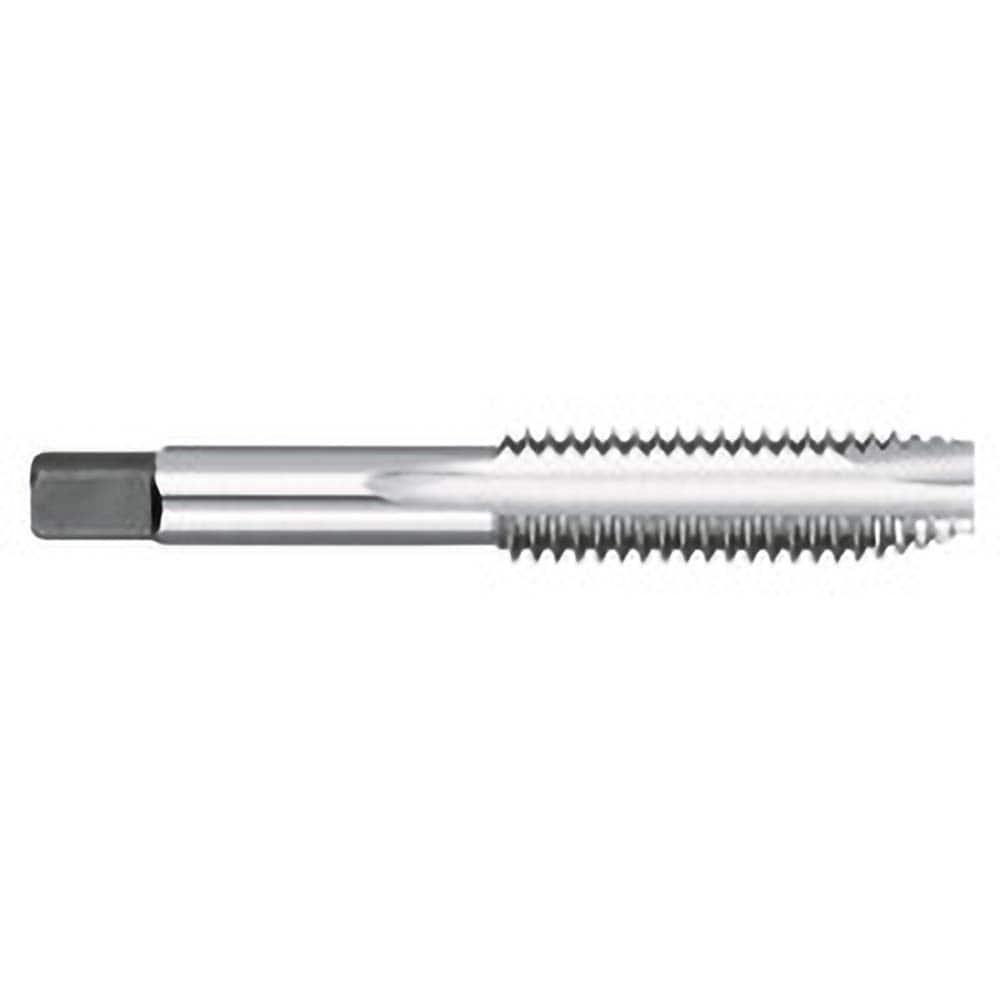

Titan USA - Spiral Point STI Taps; Thread Size (Inch): 7/16-14 ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Number of Flutes: 3 ; Chamfer: Plug ; Finish/Coating: Uncoated
Item #: 07956162
Brand: Titan USA
Model #: TT92378
Product Specifications
Spiral Point STI Taps; Thread Size (Inch): 7/16-14 ; Class of Fit: 2B/3B ; Thread Limit: H3 ; Number of Flutes: 3 ; Chamfer: Plug ; Finish/Coating: Uncoated
| Thread Size (Inch) | 7/16-14 |
| Class of Fit | 2B/3B |
| Thread Limit | H3 |
| Number of Flutes | 3 |
| Chamfer | Plug |
| Finish/Coating | Uncoated |
| Overall Length (Decimal Inch) | 3.1563 |
| Overall Length (Inch) | 3-5/32 |
| Thread Standard | UNC |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 1.4375 |
| Thread Length (Inch) | 1-7/16 |
| Square Length (Inch) | 13/32 |
| Square Size (Decimal Inch) | 0.2420 |
| Series/List | 770 |
