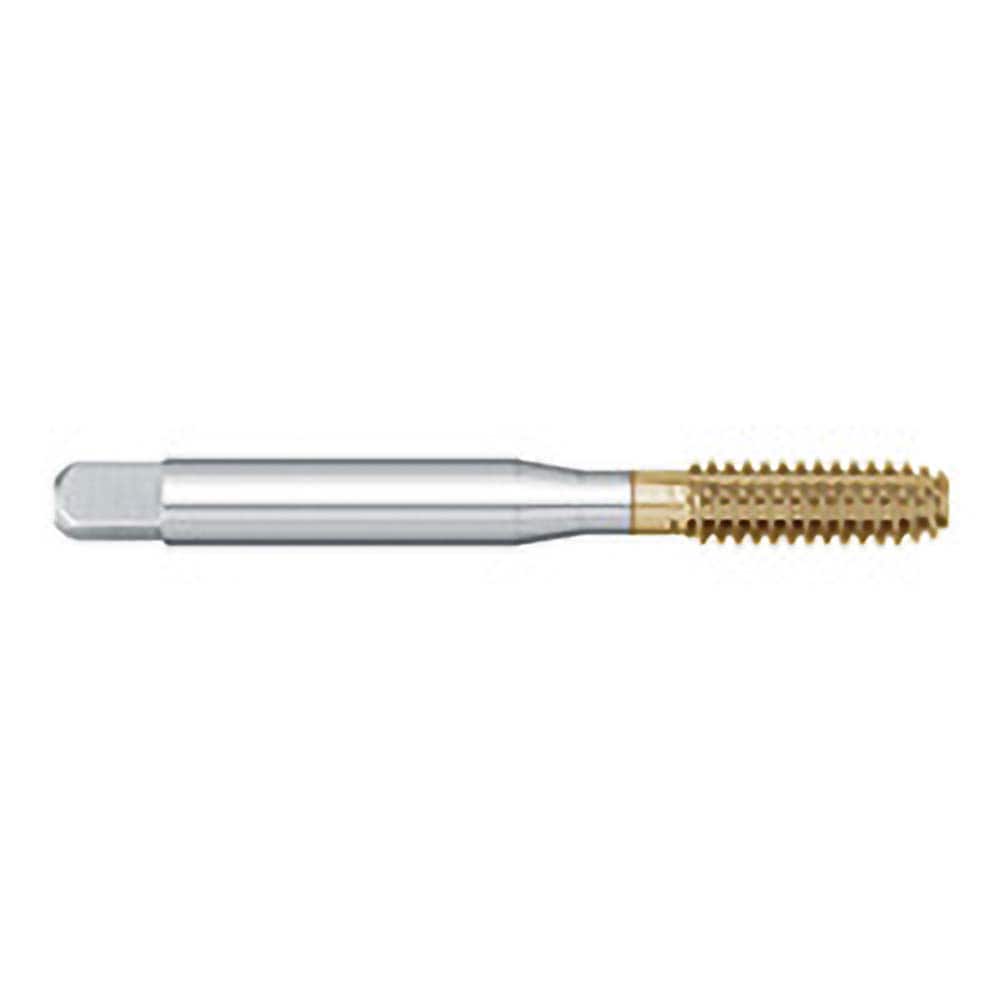

Titan USA - Thread Forming Taps; Thread Size (Inch): 5/16-18 ; Class of Fit: 2B/3B ; Thread Limit: H5 ; Chamfer: Plug ; Finish/Coating: TiN ; Material: High Speed Steel
Item #: 07955297
Brand: Titan USA
Model #: TT92881
Product Specifications
Thread Forming Taps; Thread Size (Inch): 5/16-18 ; Class of Fit: 2B/3B ; Thread Limit: H5 ; Chamfer: Plug ; Finish/Coating: TiN ; Material: High Speed Steel
| Thread Size (Inch) | 5/16-18 |
| Class of Fit | 2B/3B |
| Thread Limit | H5 |
| Chamfer | Plug |
| Finish/Coating | TiN |
| Material | High Speed Steel |
| Overall Length (Decimal Inch) | 2.7188 |
| Tap Type | Thread Forming |
| Thread Standard | UNC |
| Thread Length (Decimal Inch) | 1.1250 |
| Thread Length (Inch) | 1-1/8 |
| Series/List | 776 |
| Thread Direction | Right Hand |
| Shank Diameter (Decimal Inch) | 0.3180 |
| Square Length (Inch) | 3/8 |
| Through Coolant | NonThrough Coolant |
