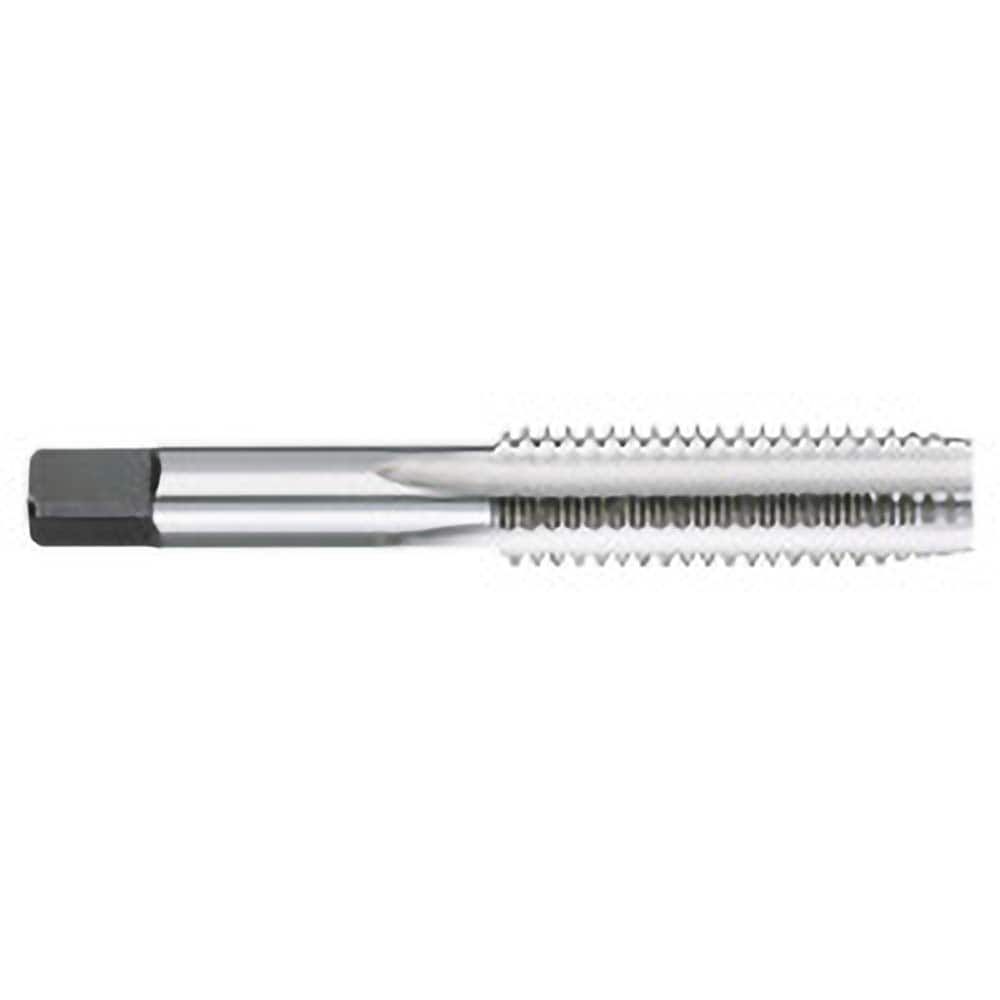

Titan USA - M16x2.00 Bottoming RH 6H D7 Uncoated High Speed Steel 4-Flute Straight Flute Hand Tap
Item #: 07953979
Brand: Titan USA
Model #: TT93069
Product Specifications
| Tap Type | Standard Hand Tap |
| Thread Size (mm) | M16x2.00 |
| Class of Fit | 6H |
| Thread Limit | D7 |
| Number of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Thread Direction | Right Hand |
| Through Coolant | NonThrough Coolant |
| Thread Standard | Metric Coarse |
| Overall Length (Decimal Inch) | 3.8125 |
| Overall Length (Inch) | 3-13/16 |
| Series/List | 755 |
| Thread Length (Decimal Inch) | 1.8125 |
| Thread Length (Inch) | 1-13/16 |
| Square Length (Inch) | 9/16 |
| Square Size (Decimal Inch) | 0.3600 |
