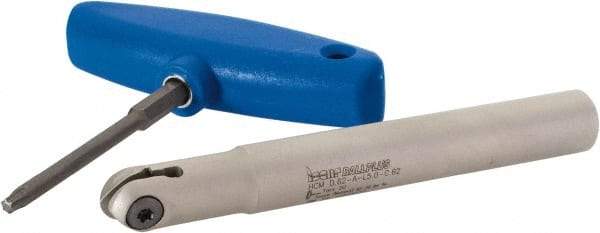

Iscar - 5/8" Cut Diam, 5/8" Shank Diam, 5.1" OAL, Indexable Ball Nose End Mill - 1.4" Head Length, Straight Shank, HCM D.62 Toolholder, HBF D.62, HBR D.62, HCR D.62 Insert
Item #: 07923873
Brand: Iscar
Model #: 3103602
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 5/8 |
| Cutting Diameter (Decimal Inch) | 0.6250 |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | HBF D.62; HBR D.62; HCR D.62 |
| Toolholder Style | HCM D.62 |
| Series | BallPlus |
| Overall Length (Decimal Inch) | 5.1000 |
| Insert Holding Method | Screw |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 1 |
| Head Length (Decimal Inch) | 1.4000 |
| Neck Diameter (Decimal Inch) | 0.5630 |
