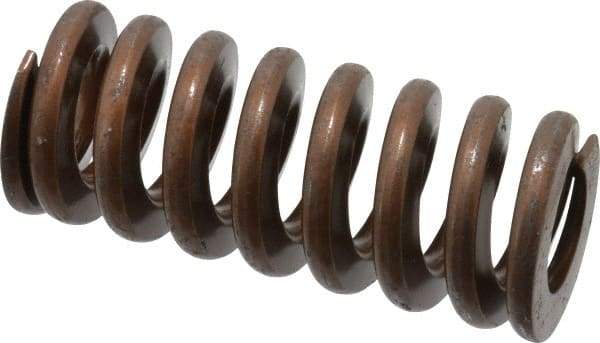

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 3-1/2" Free Length, Gold Die Spring - 1117.2 Lb Max Deflection, 1.05" Max Deflection, Heavy Duty, Chromium Alloy Steel - Benchmark Tooling

Associated Spring Raymond - 1-1/2" Hole Diam, 3/4" Rod Diam, 3-1/2" Free Length, Gold Die Spring - 1117.2 Lb Max Deflection, 1.05" Max Deflection, Heavy Duty, Chromium Alloy Steel


Item #: 07663024
Brand: Associated Spring Raymond
Model #: 105-714
Exact Tooling IR#: 04

Product Specifications
Hole Diameter (Inch) 1-1/2
Rod Diameter (Inch) 3/4
Free Length (Inch) 3-1/2
Load Type Heavy-Duty
Color Gold
Maximum Deflection Load (Lb.) 1117.20
Maximum Deflection (Decimal Inch) 1.0500
Wire Shape Trapezoidal
Material Chromium Alloy Steel
$22.05
