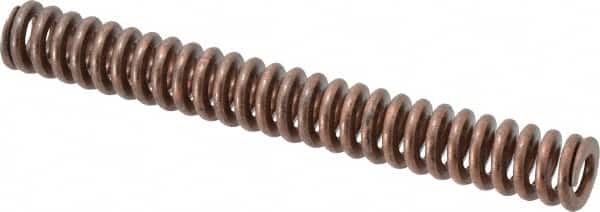

Associated Spring Raymond - 3/4" Hole Diam, 3/8" Rod Diam, 6" Free Length, Gold Die Spring - 288 Lb Max Deflection, 1.8" Max Deflection, Heavy Duty, Chromium Alloy Steel
Item #: 07662661
Brand: Associated Spring Raymond
Model #: 105-424
Exact Tooling IR#: 04
Product Specifications | |
---|---|
Hole Diameter (Inch) | 3/4 |
Rod Diameter (Inch) | 3/8 |
Free Length (Inch) | 6 |
Load Type | Heavy-Duty |
Color | Gold |
Maximum Deflection Load (Lb.) | 288.00 |
Maximum Deflection (Decimal Inch) | 1.8000 |
Wire Shape | Trapezoidal |
Material | Chromium Alloy Steel |
