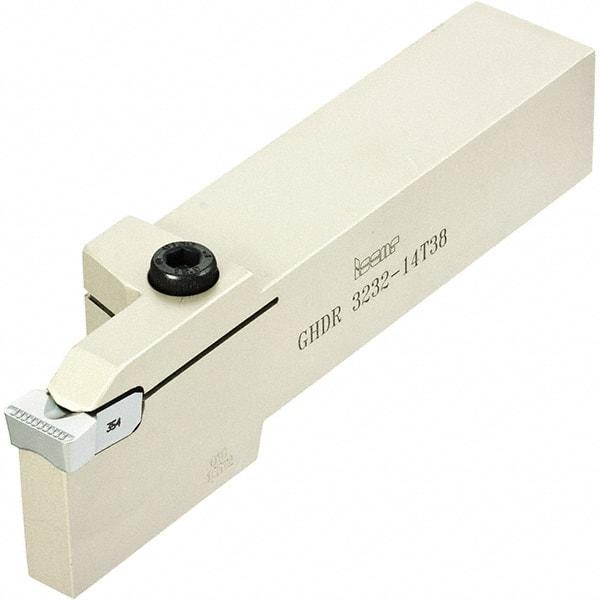

Iscar - GHD, External, Right Hand, 1/2" Max Depth of Cut, 0.26 to 0.327" Groove Width, Indexable Grooving Tool Holder - GDM.. 808, GI.. 8.. Insert Compatibility, 1" Shank Height, 1" Shank Width, 6" OAL
Item #: 07638885
Brand: Iscar
Model #: 2801029
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Minimum Groove Width (Decimal Inch) | 0.2600 |
| Maximum Groove Width (Decimal Inch) | 0.3270 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GHD |
| Insert Compatibility | GDM.. 808; GI.. 8.. |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off; Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8800 |
| Complete Insert Compatibility | GDMF 808; GDMU 808; GDMY 808; GIDA 80-40; GIDA 80-40-D; GIDA 80-40CB-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIF 8.00E-1.20; GIF 8.00E-0.80; GIF 8.00E-0.40 |
