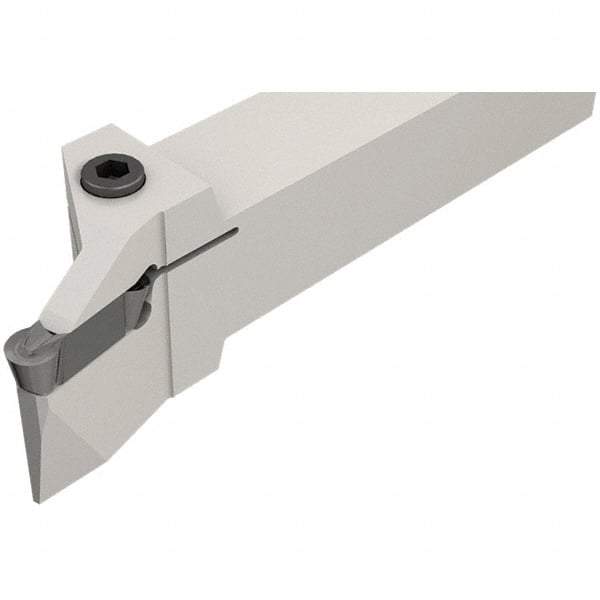

Iscar - GHDK, Internal or External, Left Hand, 19mm Max Depth of Cut, 6 to 6mm Groove Width, Indexable Grooving Tool Holder - GIPA 6.00 Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 07638653
Brand: Iscar
Model #: 2800800
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal or External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7480 |
| Maximum Depth of Cut (mm) | 19.00 |
| Minimum Groove Width (Decimal Inch) | 0.2362 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.00 |
| Maximum Groove Width (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 150.00 |
| Overall Length (Decimal Inch) | 5.9055 |
| Toolholder Style | GHDK |
| Insert Compatibility | GIPA 6.00 |
| Shank Height (mm) | 25.00 |
| Shank Height (Decimal Inch) | 0.9843 |
| Shank Width/Diameter (mm) | 25.00 |
| Shank Width/Diameter (Decimal Inch) | 0.9843 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 32.20 |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.2677 |
| Complete Insert Compatibility | GIPA 6.00-3.00; GIPA 6.00-3.00-D; GIPA 6.00-3.00CB; GIPA 6.00-3.00YZ; GIPA 6.00-3.00YZ-D |
