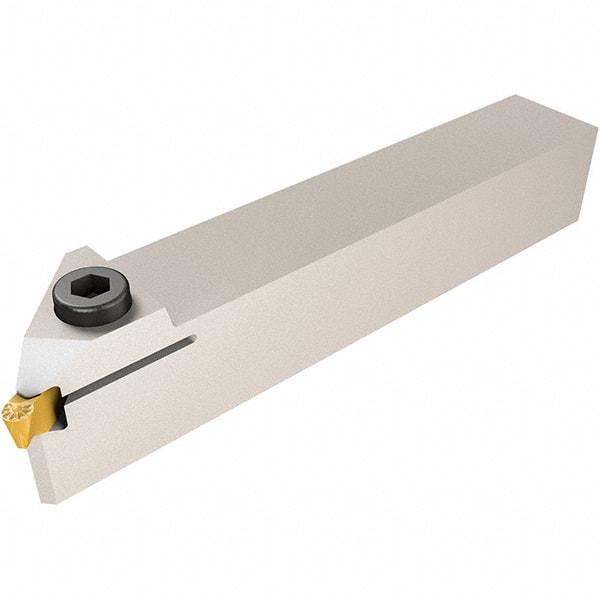

Iscar - GHMU, External, Right Hand, 4.8mm Max Groove Width, Indexable Grooving Tool Holder - GI.. Insert Compatibility, 16mm Shank Height, 16mm Shank Width, 112mm OAL
Item #: 07638596
Brand: Iscar
Model #: 2800470
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Groove Width (mm) | 4.80 |
| Maximum Groove Width (Decimal Inch) | 0.1890 |
| Overall Length (mm) | 112.00 |
| Overall Length (Decimal Inch) | 4.4094 |
| Toolholder Style | GHMU |
| Insert Compatibility | GI.. |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Width/Diameter (Decimal Inch) | 0.6299 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Undercutting |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 19.00 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7480 |
| Complete Insert Compatibility | GIMY 315-UN; GIMY 420-UN; GIP 3.00-1.50UN; GIP 3.18-0.20-22D; GIP 3.18-0.20-22G; GIP 4.00-2.0UN |
