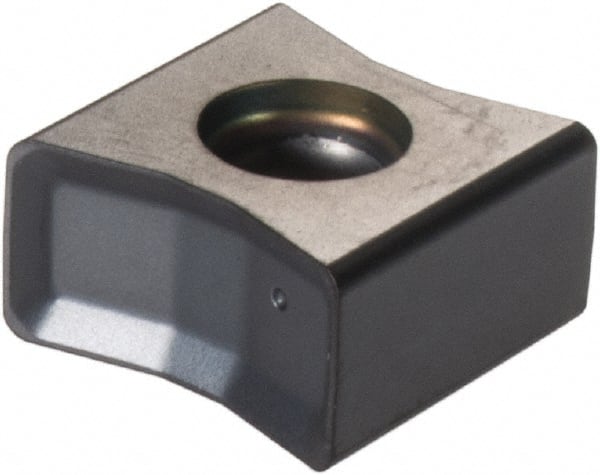

LNKX 1106PN-N MM IC910 Carbide Milling Insert AlTiN Finish, 0.439″ Long x 0.433″ Thick x 0.236″ Wide
Item #: 07629785
Brand: Iscar
Model #: 5603567
Product Specifications
| Insert Style | LNKX |
| Insert Size Code | 1106 |
| Insert Size | 1106 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC910 |
| Thickness Range (Decimal Inch) | 0.3500 to 0.5000 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Length Range (Decimal Inch) | 0.4000 to 0.4500 |
| Relief Angle | 0.00 |
| Series | TANGMILL |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Maximum Depth of Cut (mm) | 5.00 |
| Insert Shape | Butterfly |
| Rake | Positive |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Iso Code | LNKX 1106PN-N MM |
| Standards | ISO 13399 |
| Manufacturers Catalog Number | LNKX 1106PN-N MM |
| Chip Breaker | PNNMM |
| Shape | Rectangle |
| Coating/Finish | Coated |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.2360 |
| Thickness (Decimal Inch - 4 Decimals) | 0.4330 |
| Length (Decimal Inch - 4 Decimals) | 0.4390 |
