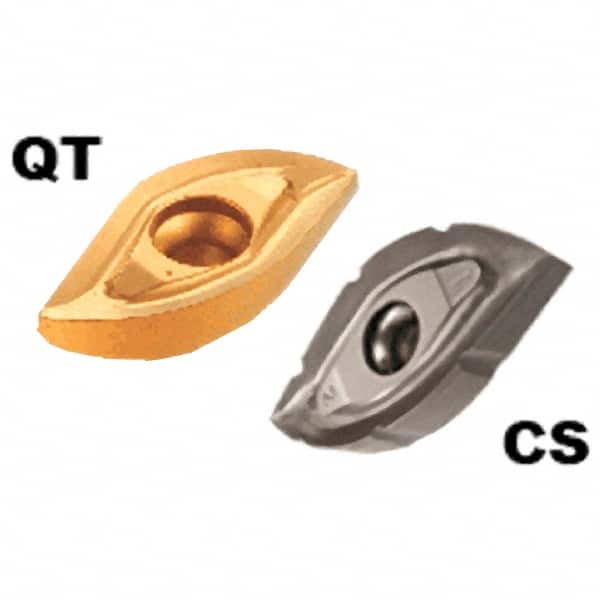

Iscar - BCR320 QT Grade IC328 Carbide Milling Insert - TiCN Finish, 0.2087" Thick, 16mm Corner Radius
Item #: 07628696
Brand: Iscar
Model #: 5603037
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BCR |
| Insert Size | 320 |
| Material | Carbide |
| Manufacturer's Grade | IC328 |
| Coating | TiCN |
| Width (Decimal Inch) | 0.5945 |
| Length (Decimal Inch) | 1.1024 |
| Thickness (Decimal Inch) | 0.2087 |
| Corner Radius (Decimal Inch) | 0.6299 |
| Corner Radius (mm) | 16.00 |
| Coating Process | PVD |
| Shape | Ball Nose |
| Chipbreaker | QT |
| ISO Number | BCR D320-QT |
