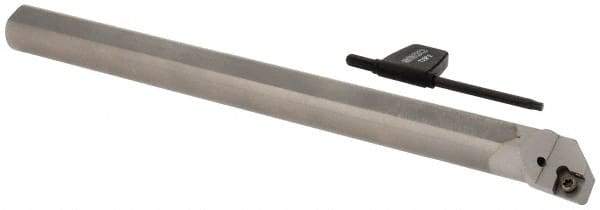

Seco - 1" Min Bore Diam, 10" OAL, 3/4" Shank Diam, SCLC Indexable Boring Bar - CCMT Insert, Screw Holding Method
Item #: 07608144
Brand: Seco
Model #: 93184
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | SCLC |
| Minimum Bore Diameter (Decimal Inch) | 1.0000 |
| Hand of Holder | Left Hand |
| Overall Length (Inch) | 10 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Compatibility | CCMT |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Lead Angle | -5 |
| Center to Cutting Edge (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Rake Angle | 0 |
| Complete Insert Compatibility | CCMT 32.52 |
| Toolholder Material | Carbide |
