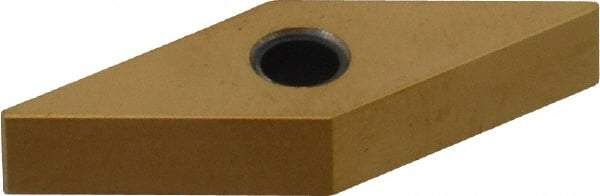

Hertel - VNGA331 T00625 Grade HP610CA Ceramic Turning Insert - TiN Finish, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 07576382
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | VNGA |
| Insert Size | 331 |
| Material | Ceramic |
| Length (Decimal Inch) | 0.6300 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | HP610CA |
| Coating | TiN |
| Chip Breaker | T00625 |
| Hole Diameter (Decimal Inch) | 0.1500 |
| Rake | Negative |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Shape | Diamond |
