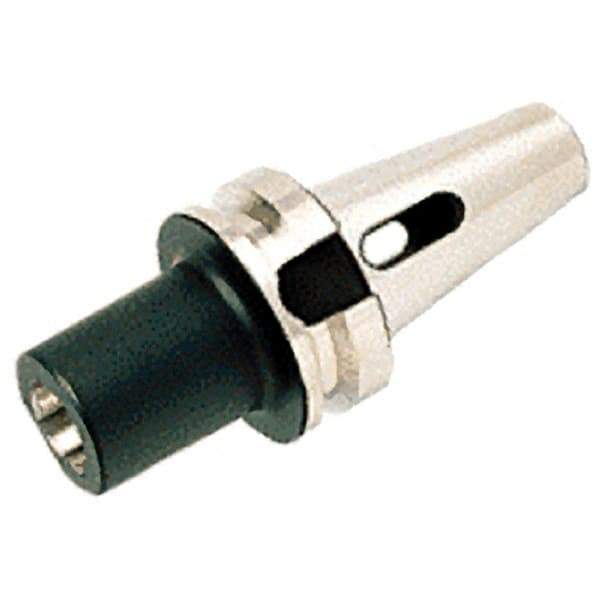

Iscar - BT50 Outside Taper, MT5 Inside Taper, BT to Morse Taper Adapter - 105mm Projection, 70mm Nose Diam, 0.000197" TIR
Item #: 07551740
Brand: Iscar
Model #: 4530078
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | BT to Morse |
| Outside Taper Size | BT50 |
| Inside Taper Size | MT5 |
| Projection (Decimal Inch) | 4.1339 |
| Projection (mm) | 105.00 |
| Through Coolant | No |
| Nose Diameter (Decimal Inch) | 2.7559 |
| Nose Diameter (mm) | 70.00 |
| TIR (Decimal Inch) | 0.0002 |
