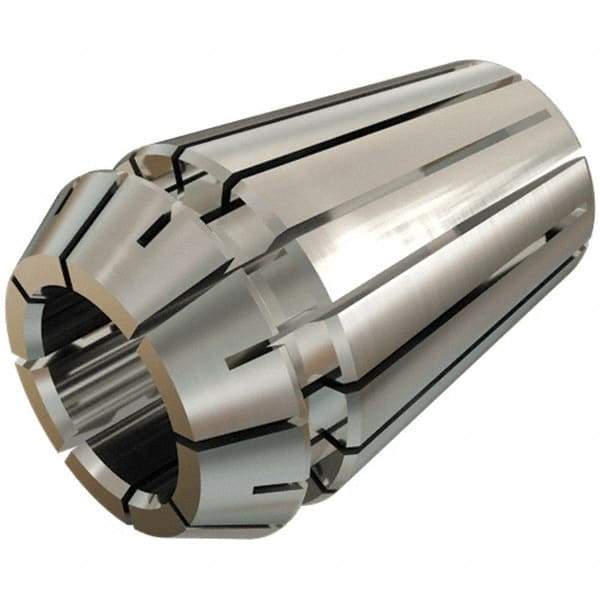

Iscar - 5 to 6mm ER40 Coolant Collet - 0.0102mm TIR
Item #: 07549785
Brand: Iscar
Model #: 4500368
Exact Tooling IR#: 04
Features and Benefits
ER coolant collets for holding cylindrical shank tools without flats on toolholder sytems with coolant through capabilities. These collets have coolant inducing features that direct coolant flow.
| Product Specifications | |
|---|---|
| Type | ER Coolant Collet |
| Collet Series | ER40 |
| Size Range (mm) | 5.00-6.00 |
| TIR (mm) | 0.0102 |
| TIR (Decimal Inch) | 0.000400 |
| Minimum Collet Capacity (mm) | 5.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.1970 |
| Maximum Collet Capacity (mm) | 5.99 |
| Maximum Collet Capacity (Decimal Inch) | 0.2360 |
| PSI | 1450 |
| PSC Code | 5136 |
