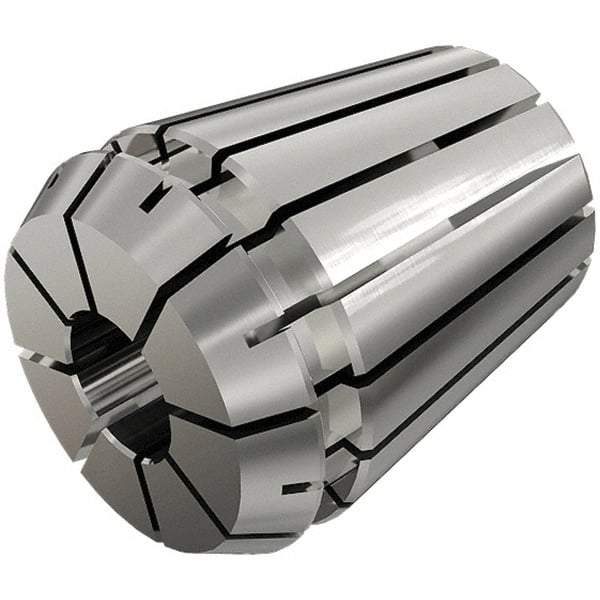

Iscar - 16 to 17mm ER40 Collet - 0.0102mm TIR
Item #: 07549512
Brand: Iscar
Model #: 4500165
Exact Tooling IR#: 04
Features and Benefits
ER collets are used for holding cylindrical shank tools without flats. These collets do not have coolant through capabilities.
| Product Specifications | |
|---|---|
| Type | ER Collet |
| Collet Series | ER40 |
| Size Range (mm) | 16.00-17.00 |
| TIR (mm) | 0.0102 |
| TIR (Decimal Inch) | 0.000400 |
| Minimum Collet Capacity (mm) | 16.00 |
| Minimum Collet Capacity (Decimal Inch) | 0.6300 |
| Maximum Collet Capacity (mm) | 16.99 |
| Maximum Collet Capacity (Decimal Inch) | 0.6690 |
| PSC Code | 5136 |
