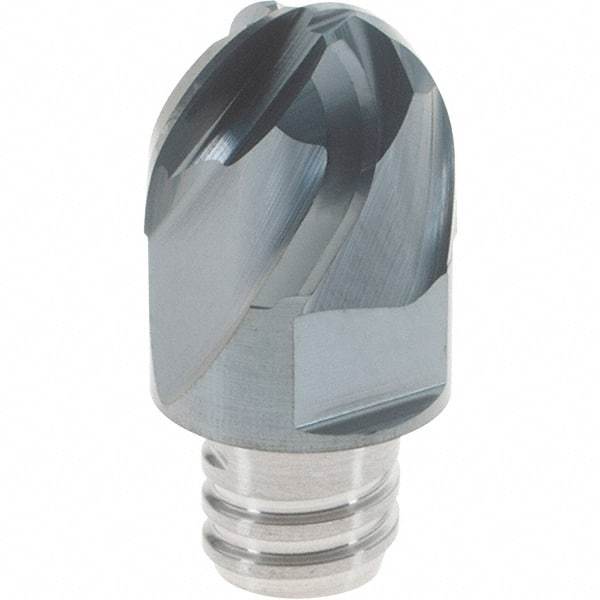

Ingersoll Cutting Tools - Milling Tip Inserts Series: Chip Surfer Milling Tip Style: 47B
Item #: 07275795
Brand: Ingersoll Cutting Tools
Model #: 5809778
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Product Specifications
Milling Tip Inserts; Series: Chip Surfer ; Milling Tip Style: 47B ; Milling Tip Type: Ball Nose ; Material: Carbide ; Cutting Diameter (Decimal Inch): 0.5000 ; Material Grade: C2
| Series | Chip Surfer |
| Milling Tip Style | 47B |
| Milling Tip Type | Ball Nose |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.5000 |
| Material Grade | C2 |
| Manufacturer's Grade | IN2005 |
| Depth of Cut (Decimal Inch) | 0.3700 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | Ball Nose |
| Corner Radius (Decimal Inch) | 0.2500 |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 0.6500 |
| Thread Size | T08 |
