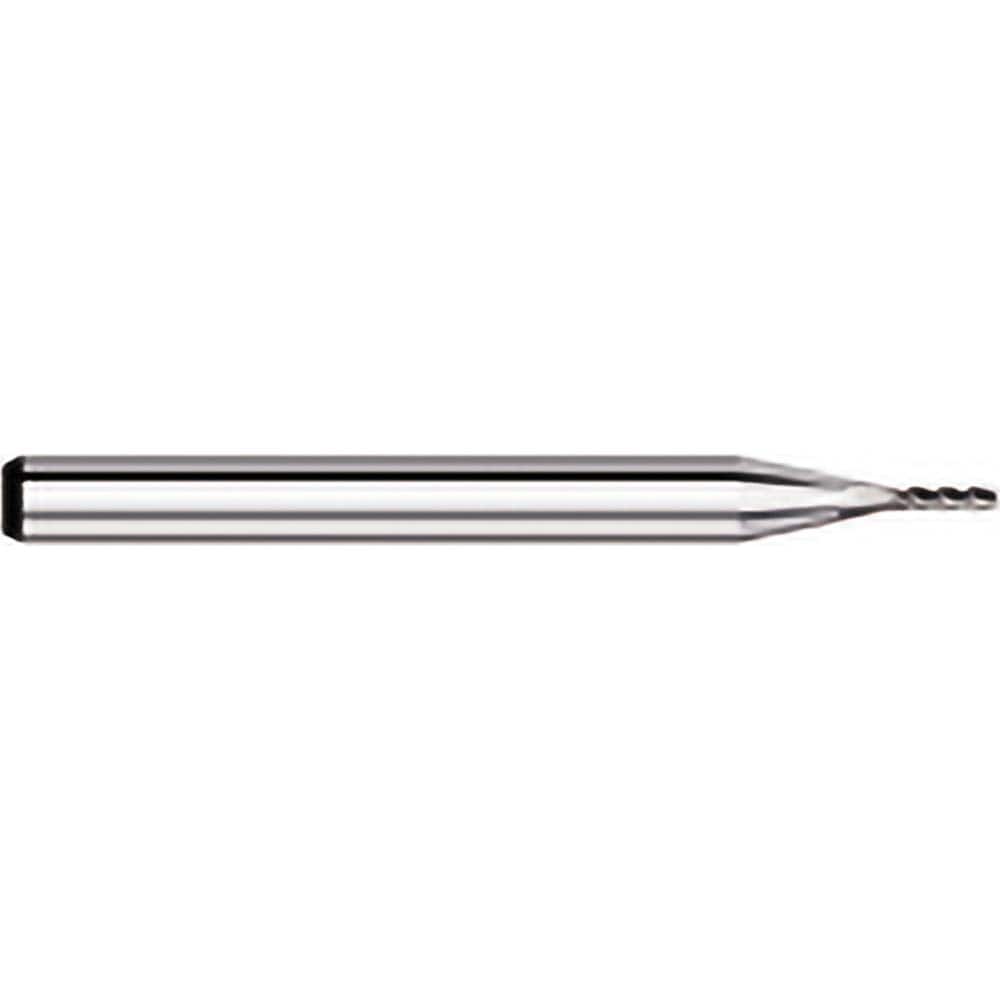

Titan USA - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Decimal Inch): 0.0250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0050 ; Number of Flutes: 4 ; Material: Solid Carbide ; Finish/Coating: Uncoated
Item #: 07269822
Brand: Titan USA
Model #: TC50607
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Decimal Inch): 0.0250 ; End Type: Corner Radius ; Corner Radius (Decimal Inch): 0.0050 ; Number of Flutes: 4 ; Material: Solid Carbide ; Finish/Coating: Uncoated
| Mill Diameter (Decimal Inch) | 0.0250 |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.0050 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Length of Cut (mm) | 1.90 |
| Length of Cut (Decimal Inch) | 0.0750 |
| Shank Diameter (Inch) | 1/8 |
| Overall Length (Inch) | 1-1/2 |
| Flute Type | Helical Flute |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | Center Cutting |
| Flute Direction | Right Hand |
