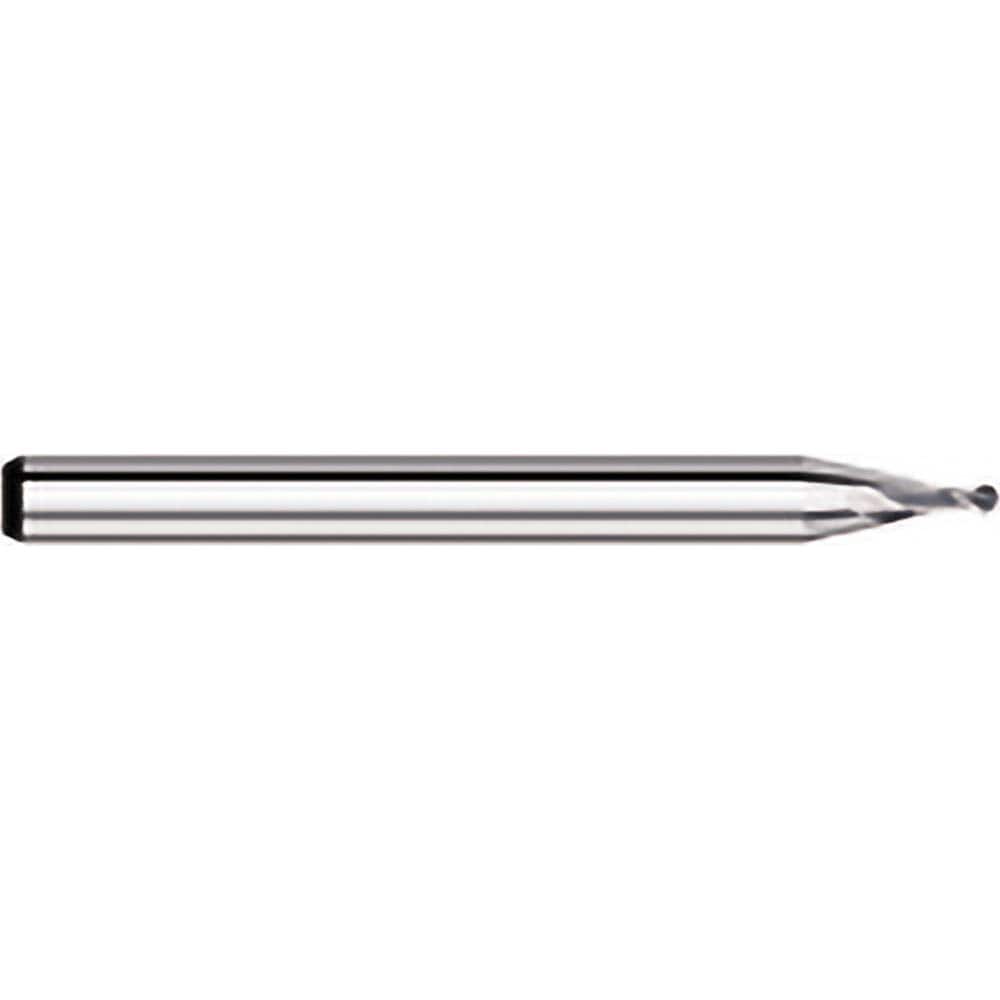

Titan USA - Ball End Mills; Mill Diameter (Inch): 1/64 ; Mill Diameter (Decimal Inch): 0.0150 ; Number of Flutes: 2 ; Length of Cut (Decimal Inch): 0.0230 ; Material: Solid Carbide ; Overall Length (Inch): 1-1/2
Item #: 07268501
Brand: Titan USA
Model #: TC53015
Product Specifications
Ball End Mills; Mill Diameter (Inch): 1/64 ; Mill Diameter (Decimal Inch): 0.0150 ; Number of Flutes: 2 ; Length of Cut (Decimal Inch): 0.0230 ; Material: Solid Carbide ; Overall Length (Inch): 1-1/2
| Mill Diameter (Inch) | 1/64 |
| Mill Diameter (Decimal Inch) | 0.0150 |
| Number of Flutes | 2 |
| Length of Cut (Decimal Inch) | 0.0230 |
| Material | Solid Carbide |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | Uncoated |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
