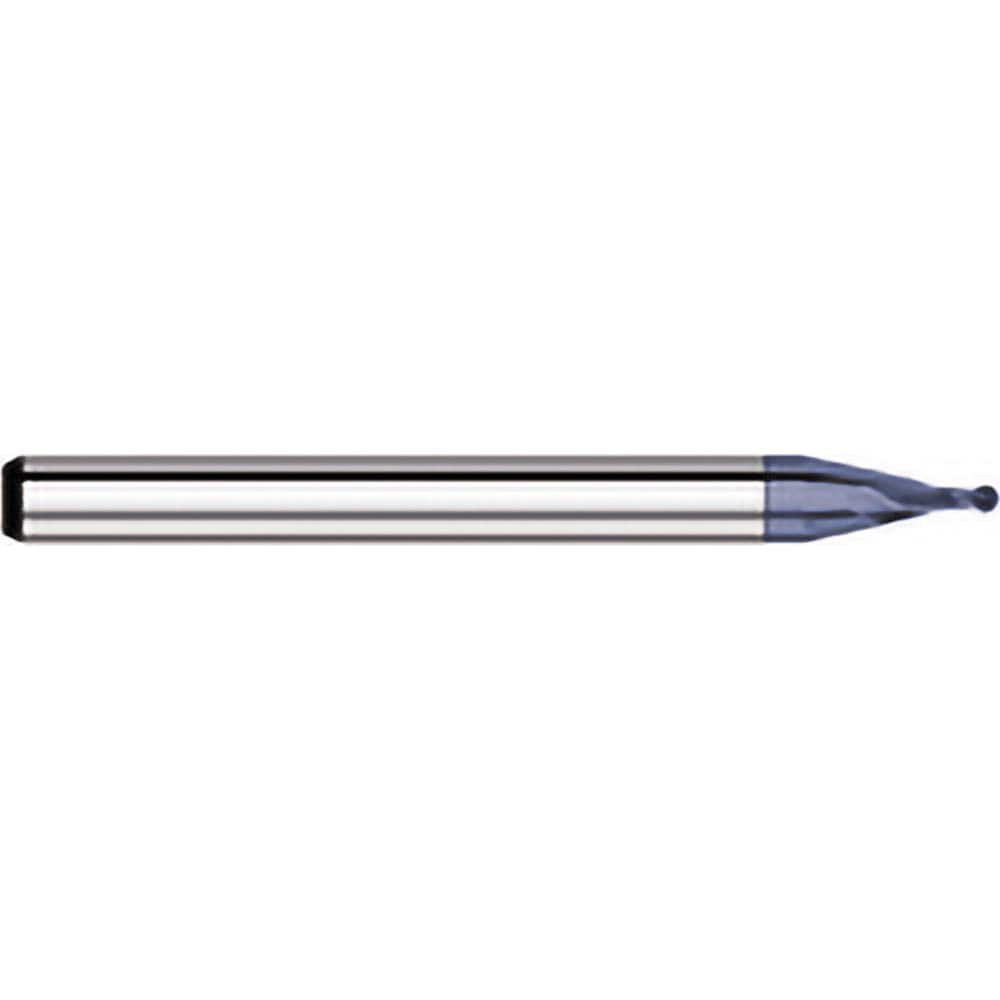

Titan USA - Ball End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; Number of Flutes: 2 ; Length of Cut (mm): 1.20 ; Length of Cut (Inch): 3/64
Item #: 07268204
Brand: Titan USA
Model #: TC53231
Product Specifications
Ball End Mills; Mill Diameter (mm): 0.80 ; Mill Diameter (Inch): 1/32 ; Mill Diameter (Decimal Inch): 0.0310 ; Number of Flutes: 2 ; Length of Cut (mm): 1.20 ; Length of Cut (Inch): 3/64
| Mill Diameter (mm) | 0.80 |
| Mill Diameter (Inch) | 1/32 |
| Mill Diameter (Decimal Inch) | 0.0310 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 1.20 |
| Length of Cut (Inch) | 3/64 |
| Length of Cut (Decimal Inch) | 0.0470 |
| Material | Solid Carbide |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Finish/Coating | AlTiN |
| Single or Double End | Single |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Flute Type | Upcut |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
