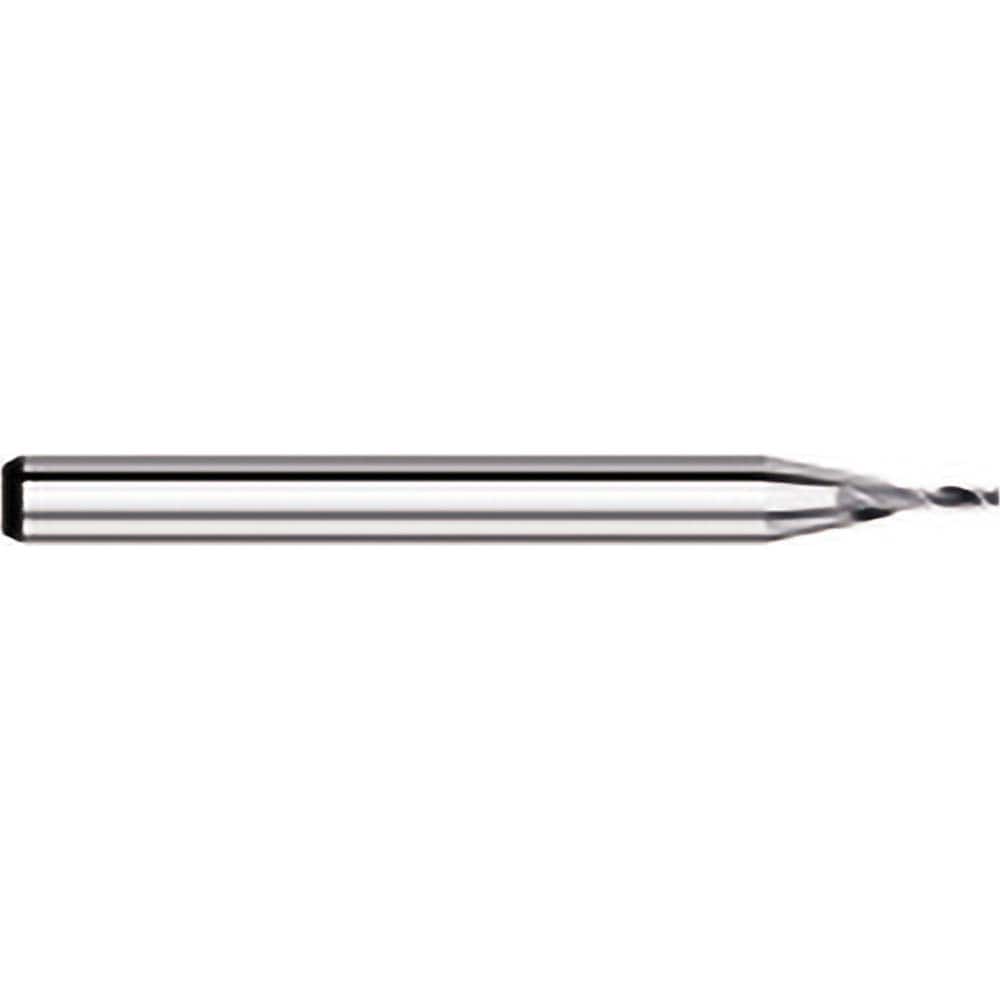

Titan USA - Square End Mills; Mill Diameter (mm): 0.60 ; Mill Diameter (Decimal Inch): 0.0240 ; Number of Flutes: 2 ; Length of Cut (Decimal Inch): 0.0720 ; Material: Solid Carbide ; Finish/Coating: Uncoated
Item #: 07266851
Brand: Titan USA
Model #: TC56024
Product Specifications
Square End Mills; Mill Diameter (mm): 0.60 ; Mill Diameter (Decimal Inch): 0.0240 ; Number of Flutes: 2 ; Length of Cut (Decimal Inch): 0.0720 ; Material: Solid Carbide ; Finish/Coating: Uncoated
| Mill Diameter (mm) | 0.60 |
| Mill Diameter (Decimal Inch) | 0.0240 |
| Number of Flutes | 2 |
| Length of Cut (Decimal Inch) | 0.0720 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/8 |
| Single or Double End | Single |
| Overall Length (Inch) | 1-1/2 |
| Overall Length (Decimal Inch) | 1.5000 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Upcut |
