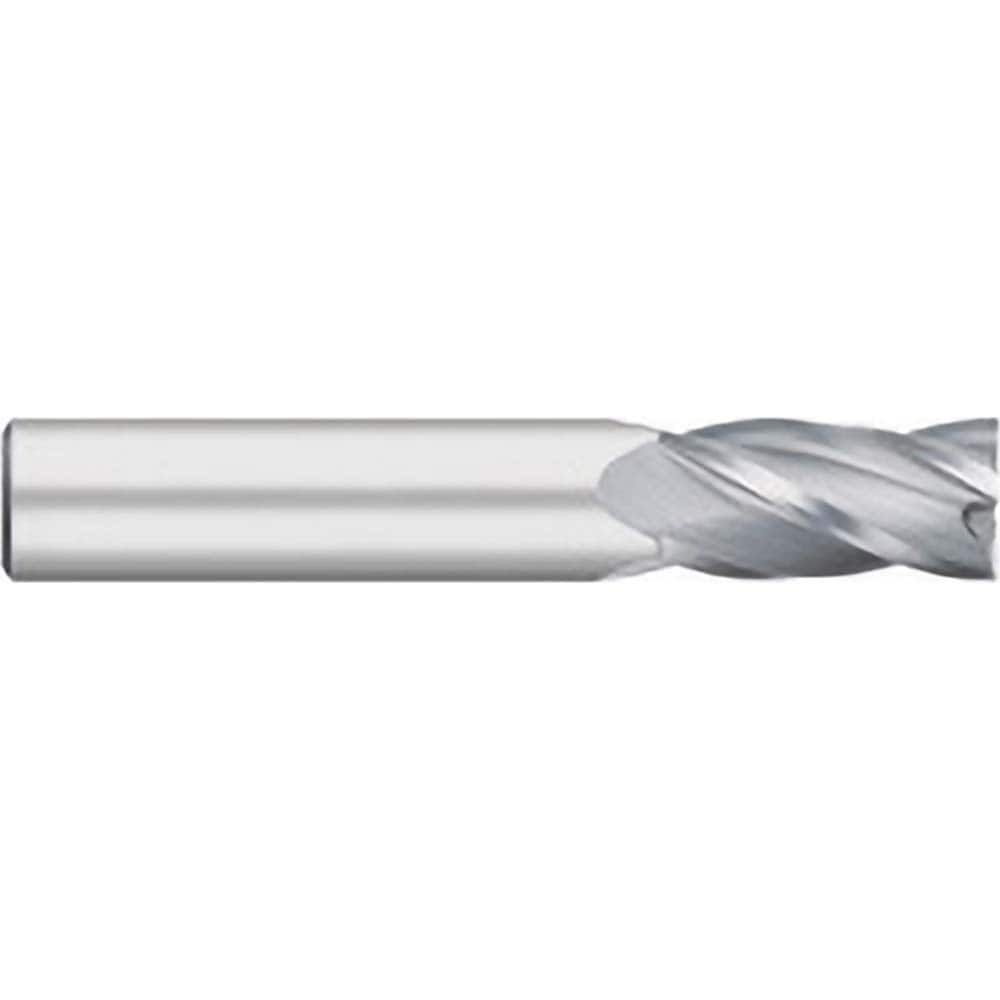

Titan USA - Square End Mills; Mill Diameter (mm): 4.50 ; Mill Diameter (Decimal Inch): 0.1772 ; Number of Flutes: 4 ; Length of Cut (mm): 16.00 ; Length of Cut (Decimal Inch): 0.6299 ; Material: Solid Carbide
Item #: 07250848
Brand: Titan USA
Model #: TC11866
Product Specifications
Square End Mills; Mill Diameter (mm): 4.50 ; Mill Diameter (Decimal Inch): 0.1772 ; Number of Flutes: 4 ; Length of Cut (mm): 16.00 ; Length of Cut (Decimal Inch): 0.6299 ; Material: Solid Carbide
| Mill Diameter (mm) | 4.50 |
| Mill Diameter (Decimal Inch) | 0.1772 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 16.00 |
| Length of Cut (Decimal Inch) | 0.6299 |
| Material | Solid Carbide |
| Finish/Coating | Uncoated |
| Shank Diameter (mm) | 6.00 |
| Single or Double End | Single |
| Overall Length (mm) | 50.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Upcut |
