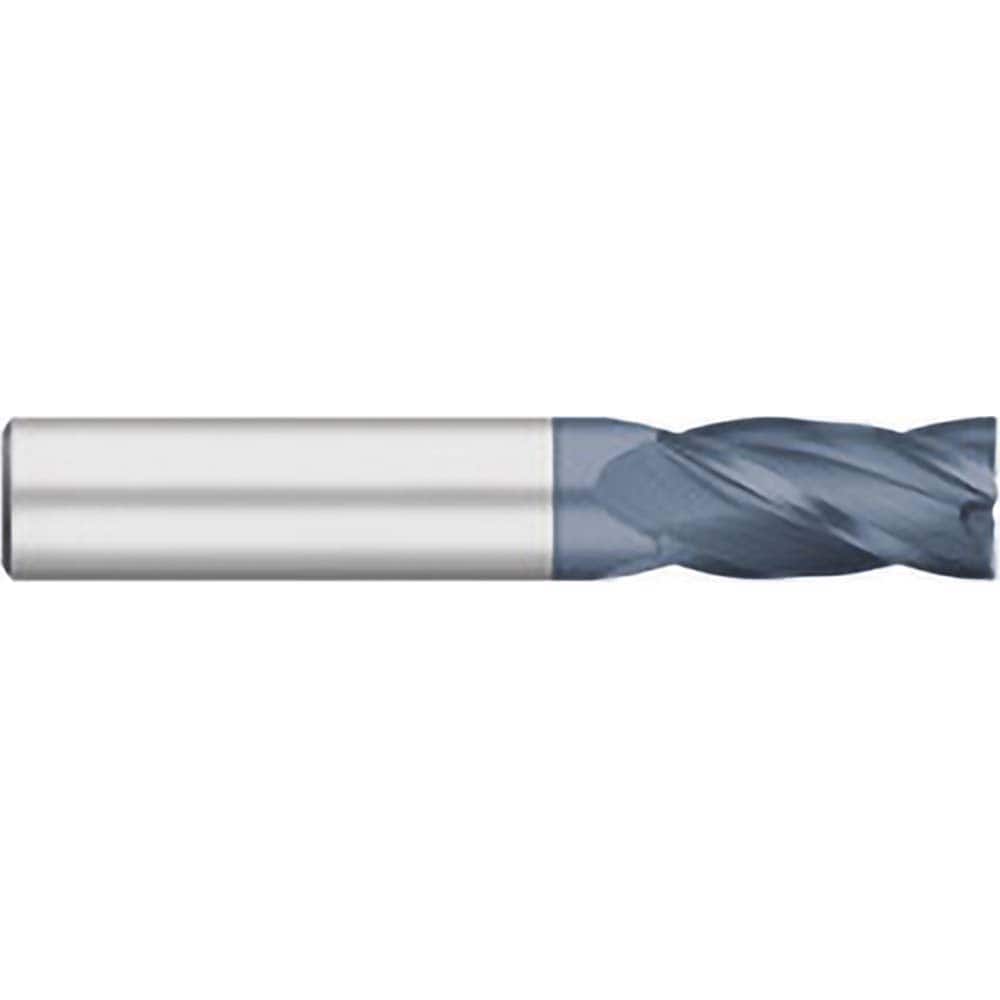

Titan USA - Square End Mills; Mill Diameter (mm): 2.00 ; Mill Diameter (Decimal Inch): 0.0787 ; Number of Flutes: 4 ; Length of Cut (mm): 6.30 ; Length of Cut (Decimal Inch): 0.2480 ; Material: Solid Carbide
Item #: 07250681
Brand: Titan USA
Model #: TC11961
Product Specifications
Square End Mills; Mill Diameter (mm): 2.00 ; Mill Diameter (Decimal Inch): 0.0787 ; Number of Flutes: 4 ; Length of Cut (mm): 6.30 ; Length of Cut (Decimal Inch): 0.2480 ; Material: Solid Carbide
| Mill Diameter (mm) | 2.00 |
| Mill Diameter (Decimal Inch) | 0.0787 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 6.30 |
| Length of Cut (Decimal Inch) | 0.2480 |
| Material | Solid Carbide |
| Finish/Coating | AlTiN |
| Shank Diameter (mm) | 3.00 |
| Single or Double End | Single |
| Overall Length (mm) | 38.00 |
| Center Cutting | Center Cutting |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Helix | No |
| Variable Index | No |
| Flute Type | Upcut |
