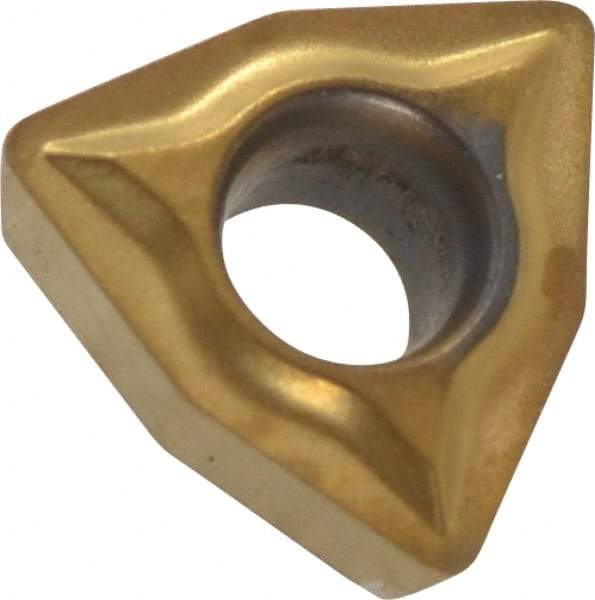

Interstate - WPMT1.51.21 Grade TCN55 Carbide Turning Insert - 80° Trigon, 3/16" Inscr Circle, 5/64" Thick, 1/64" Corner Radius
Item #: 07182553
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPMT |
| Insert Size | 1.51.21 |
| Material | Carbide |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Thickness (Inch) | 5/64 |
| Thickness (Decimal Inch) | 0.0781 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TCN55 |
| Material Grade | C5 |
| Hole Diameter (Decimal Inch) | 0.0850 |
| Relief Angle | 11 |
| Primary Workpiece Material | P; M |
| Included Angle | 80 |
| Insert Holding Method | Screw |
| Shape | Trigon |
