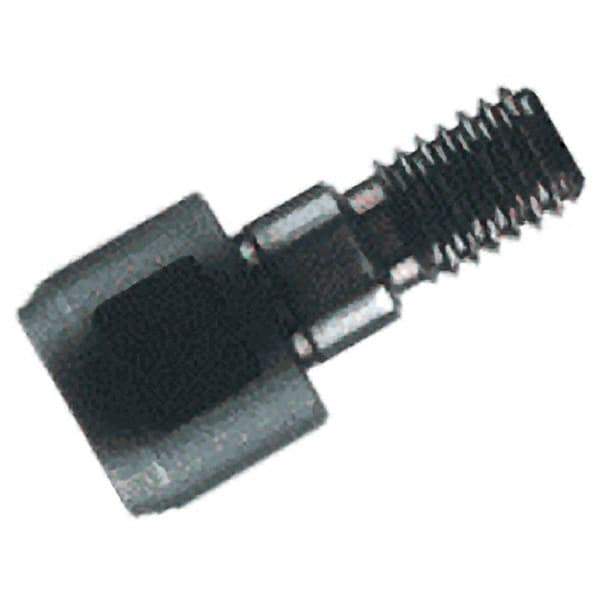

Iscar - T06 Connection to Tip, M08 Connection to Shank, Milling Tip Insert Threaded Extension - 0.9843 Inch Extension Length, 0.3661 Inch Max Diameter, FlexFit and Multimaster Series
Item #: 07138100
Brand: Iscar
Model #: 3103011
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | FlexFit; Multimaster |
| Thread Size Connection to Tip | T06 |
| Thread Size Connection to Shank | M08 |
| Extension Length (mm) | 25.00 |
| Extension Length (Decimal Inch) | 0.9843 |
| Connection Length (Decimal Inch) | 0.6890 |
| Connection Length (mm) | 17.50 |
| Maximum Diameter (mm) | 9.30 |
| Maximum Diameter (Decimal Inch) | 0.3661 |
