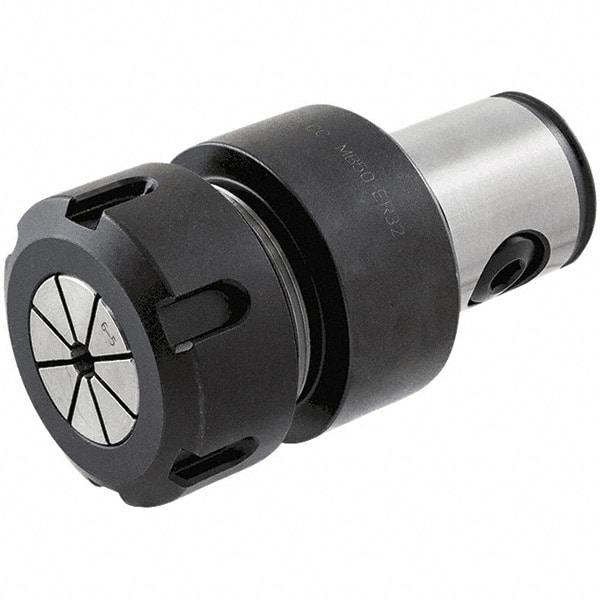

Iscar - 2.01mm to 19.99mm Capacity, 55mm Projection, Modular Connection, ER32 Collet Chuck - Through-Spindle
Item #: 07137912
Brand: Iscar
Model #: 4550602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Collet System | ER |
| Collet Series | ER32 |
| Shank Type | Modular Connection |
| Modular Connection Size | MB50 |
| Projection (mm) | 55.00 |
| Projection (Decimal Inch) | 2.1654 |
| Through Coolant | Yes |
| Minimum Collet Capacity (Decimal Inch) | 0.0790 |
| Minimum Collet Capacity (mm) | 2.01 |
| Maximum Collet Capacity (mm) | 19.99 |
| Maximum Collet Capacity (Decimal Inch) | 0.7870 |
| Nose Diameter (mm) | 50.01 |
| Nose Diameter (Decimal Inch) | 1.9690 |
| PSC Code | 5136 |
| Coolant Type | Through-Spindle |
