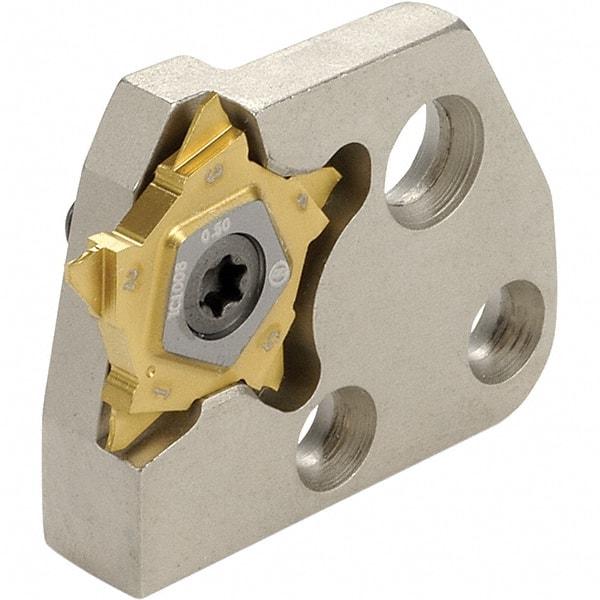

Iscar - 0.5 to 3.18mm Groove Width, Left Hand Cut, PCAD Indexable Grooving Blade - PENTA 24N-J, PENTA 24N-PF, PENTA 24R/L-J, PENTA 24R/L-Z Insert Style, Series Modular Grip & PentaCut
Item #: 07108145
Brand: Iscar
Model #: 2301666
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Direction | Left Hand |
| Minimum Groove Width (mm) | 0.50 |
| Minimum Groove Width (Decimal Inch) | 0.0197 |
| Blade Style | PCAD |
| Series | Modular Grip; PentaCut |
| Blade Height (mm) | 30.30 |
| Blade Height (Decimal Inch) | 1.1929 |
| Blade Width (mm) | 5.20 |
| Blade Width (Decimal Inch) | 0.2047 |
| Maximum Groove Width (mm) | 3.18 |
| Maximum Groove Width (Decimal Inch) | 0.1250 |
| Overall Length (mm) | 41.50 |
| Overall Length (Decimal Inch) | 1.6340 |
| Insert Style | PENTA 24N-J; PENTA 24N-PF; PENTA 24R/L-J; PENTA 24R/L-Z |
| Complete Insert Compatibility | PENTA 24L100J15D; PENTA 24L150Z06D; PENTA 24N050J000; PENTA 24N100PF010; PENTA 24N157J079 |
