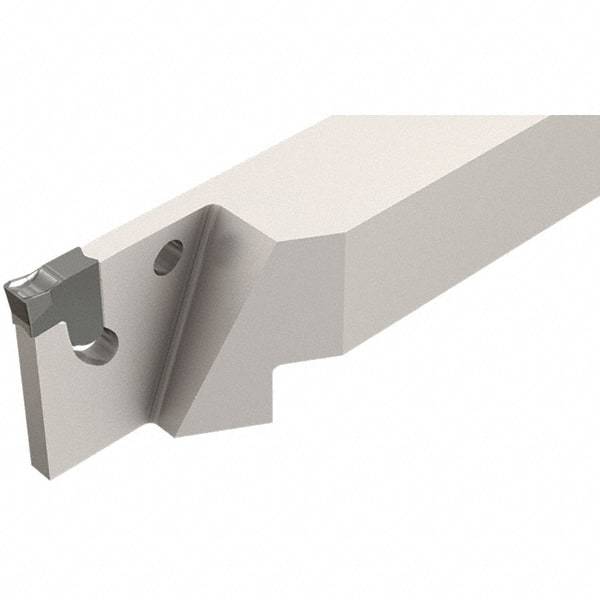

Iscar - External Thread, 1-1/2" Max Depth of Cut, 4.7mm Min Groove Width, 150.11mm OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, TAG Insert Style, TGT Toolholder Style, Series Tang-Grip
Item #: 07090350
Brand: Iscar
Model #: 2302210
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 38.10 |
| Maximum Depth of Cut (Decimal Inch) | 1.5000 |
| Minimum Groove Width (Decimal Inch) | 0.1850 |
| Minimum Groove Width (mm) | 4.70 |
| Maximum Groove Width (Decimal Inch) | 0.2170 |
| Overall Length (Decimal Inch) | 5.9100 |
| Overall Length (mm) | 150.11 |
| Series | Tang-Grip |
| Toolholder Style | TGT |
| Insert Compatibility | TAG |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | NonThrough Coolant |
| Insert Holding Method | Clamp |
| Head Height (Decimal Inch) | 1.0000 |
| Complete Insert Compatibility | TAG N-C/W/M; TAG N-J/JS/JT; TAG N-UT; TAG R/L-C; TAG R/L-J/JS |
