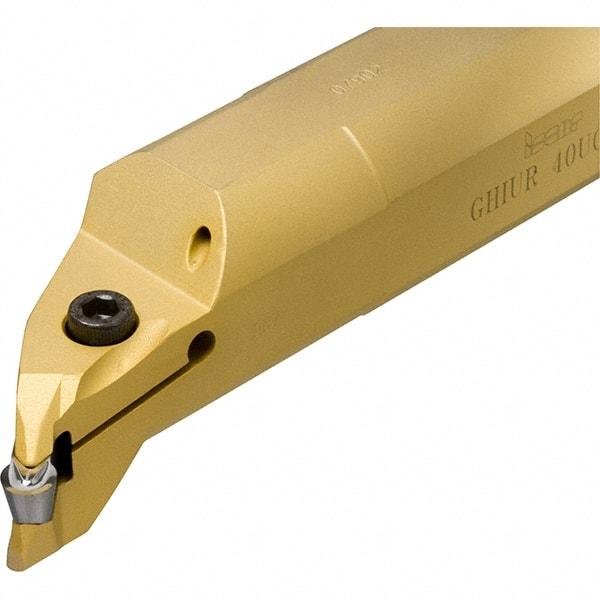

Iscar - 2.36" Min Bore Diam, 14" OAL, 2" Shank Diam, GHIUR Indexable Boring Bar - 2.95" Max Bore Depth, GIPA 6.. Insert, Clamp Holding Method
Item #: 07077167
Brand: Iscar
Model #: 2896331
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHIUR |
| Series | Cut Grip |
| Minimum Bore Diameter (Decimal Inch) | 2.3600 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (Decimal Inch) | 2.9500 |
| Overall Length (Decimal Inch) | 14.0000 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Insert Compatibility | GIPA 6.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Undercutting |
| Insert Holding Method | Clamp |
| Lead Angle | 45 |
| Center to Cutting Edge (Decimal Inch) | 1.2500 |
| Complete Insert Compatibility | GIPA 6.0-35V-0.8; GIPA 6.00-0.40 |
