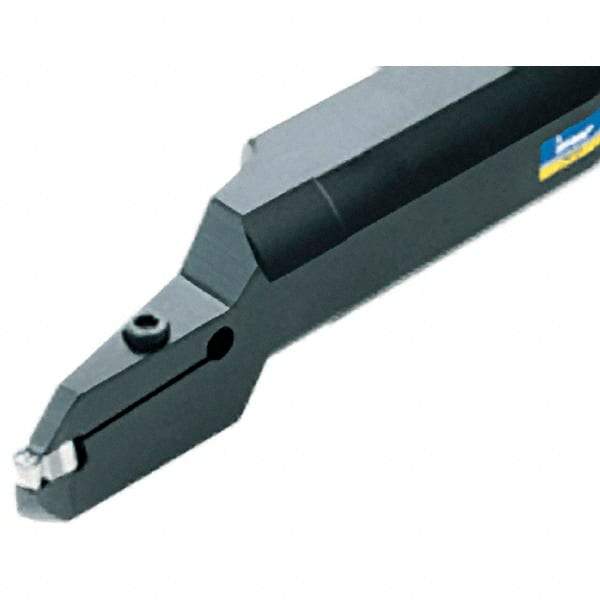

Iscar - 160mm Min Bore Diam, 320mm OAL, 40mm Shank Diam, GHIU-C-A Indexable Boring Bar - 83mm Max Bore Depth, GDMA 840, GI.A 8.. Insert
Item #: 07076987
Brand: Iscar
Model #: 2801235
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GHIU-C-A |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 160.00 |
| Minimum Bore Diameter (Decimal Inch) | 6.2992 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 83.00 |
| Maximum Bore Depth (Decimal Inch) | 3.2677 |
| Overall Length (mm) | 320.00 |
| Overall Length (Decimal Inch) | 12.5984 |
| Shank Diameter (mm) | 40.00 |
| Shank Diameter (Decimal Inch) | 1.5748 |
| Insert Compatibility | GDMA 840; GI.A 8.. |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving |
| Center to Cutting Edge (mm) | 21.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8268 |
| Complete Insert Compatibility | GDMA 840; GIDA 80-40; GIDA 80-40-D; GIDA 80-40YZ; GIDA 80-40YZ-D; GIPA 8.00-4.00 |
