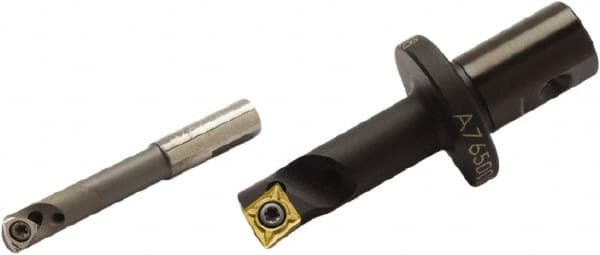

Seco - 5.99mm Min Bore Diam, 5.99mm Shank Diam, Indexable Boring Bar - 16mm Max Bore Depth, WB.. 0301.. Insert
Item #: 07036163
Brand: Seco
Model #: 20622
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.2360 |
| Minimum Bore Diameter (mm) | 5.99 |
| Minimum Bore Diameter (Decimal Inch) | 0.2360 |
| Maximum Bore Depth (mm) | 16.00 |
| Maximum Bore Depth (Decimal Inch) | 0.6300 |
| Shank Diameter (mm) | 5.99 |
| Shank Diameter (Decimal Inch) | 0.2360 |
| Insert Compatibility | WB.. 0301.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Lead Angle | 90 |
| Maximum Bore Diameter (mm) | 8.00 |
| Maximum Bore Diameter (Decimal Inch) | 0.3150 |
| Maximum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch) | 0.3150 |
| Center to Cutting Edge (mm) | 2.90 |
| Center to Cutting Edge (Decimal Inch) | 0.1140 |
| Complete Insert Compatibility | WB.. 0301.. |
| Toolholder Material | Steel |
