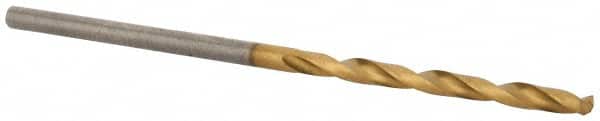

Guhring - 1/16" 118° High Speed Steel Jobber Drill - TiN Finish, Right Hand Cut, Spiral Flute, Straight Shank, 43mm OAL, Standard Point
Item #: 07032394
Brand: Guhring
Model #: 9006510015900
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (Inch) | 1/16 |
| Drill Bit Size (Decimal Inch) | 0.0625 |
| Drill Point Angle | 118 |
| Drill Bit Material | High Speed Steel |
| Drill Bit Finish/Coating | TiN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 20.00 |
| Overall Length (mm) | 43.00 |
| Point Type | Standard |
| Shank Diameter (Inch) | 1/16 |
| Spiral Type | Regular Spiral |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | -0.014 to 0.000 |
| Web Thinning | Web-Thinned |
| Specification Number | DIN 338 |
| Series/List | 651 |
