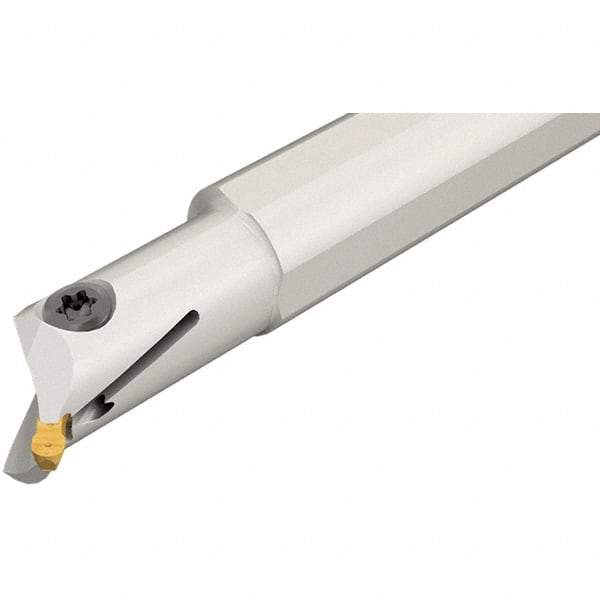

Iscar - 16mm Min Bore Diam, 125mm OAL, 16mm Shank Diam, GEHIU Indexable Boring Bar - 32mm Max Bore Depth, GEPI Insert
Item #: 07009228
Brand: Iscar
Model #: 2801202
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | GEHIU |
| Series | Cut Grip |
| Minimum Bore Diameter (mm) | 16.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.6299 |
| Hand of Holder | Right Hand |
| Maximum Bore Depth (mm) | 32.00 |
| Maximum Bore Depth (Decimal Inch) | 1.2598 |
| Overall Length (mm) | 125.00 |
| Overall Length (Decimal Inch) | 4.9213 |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Insert Compatibility | GEPI |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Undercutting |
| Center to Cutting Edge (mm) | 9.70 |
| Center to Cutting Edge (Decimal Inch) | 0.3819 |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Complete Insert Compatibility | GEPI 2.00-1.00; GEPI 2.00-1.00UL; GEPI 2.00-1.00UR; GEPI 3.00-1.50; GEPI 3.00-1.50UN; GEPI 3.18-1.59 |
