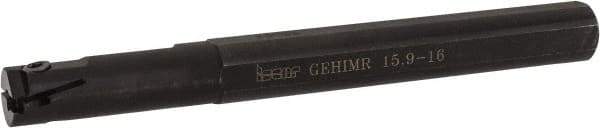

Iscar - GEHIM, Internal, Right Hand, 0.098" Max Depth of Cut, 0.031 to 0.075" Groove Width, Indexable Grooving Tool Holder - GEPI.. Insert Compatibility, 5/8" Shank Width, 6" OAL, Through Coolant
Item #: 07009160
Brand: Iscar
Model #: 2801195
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.0980 |
| Minimum Groove Width (Decimal Inch) | 0.0310 |
| Maximum Groove Width (Decimal Inch) | 0.0750 |
| Overall Length (Decimal Inch) | 6.0000 |
| Toolholder Style | GEHIM |
| Insert Compatibility | GEPI.. |
| Shank Width/Diameter (Decimal Inch) | 0.6250 |
| Series | Cut Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 0.6300 |
| Center to Cutting Edge (Decimal Inch) | 0.4100 |
| Head Length (Decimal Inch) | 1.5700 |
| Manufacturers Catalog Number | GEHIMR 15.9-16 |
