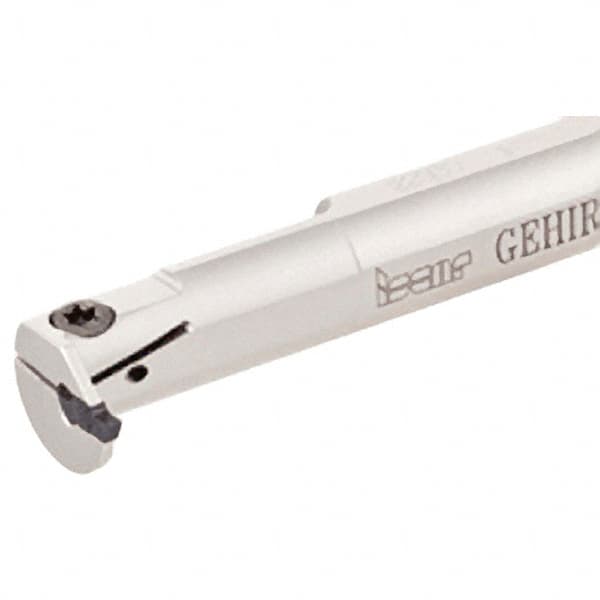

Iscar - GEHI, Internal, Right Hand, 3mm Max Depth of Cut, 1.9 to 2.4mm Groove Width, Indexable Grooving Tool Holder - GE.. Insert Compatibility, 16mm Shank Width, 160mm OAL, Through Coolant
Item #: 07009020
Brand: Iscar
Model #: 2801174
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Minimum Groove Width (mm) | 1.90 |
| Maximum Groove Width (mm) | 2.40 |
| Overall Length (mm) | 160.00 |
| Toolholder Style | GEHI |
| Insert Compatibility | GE.. |
| Shank Width/Diameter (mm) | 16.00 |
| Series | Cut Grip |
| Through Coolant | Coolant Through |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (mm) | 16.00 |
| Center to Cutting Edge (mm) | 11.00 |
| Head Length (mm) | 40.00 |
| Complete Insert Compatibility | GEMI; GEPI |
