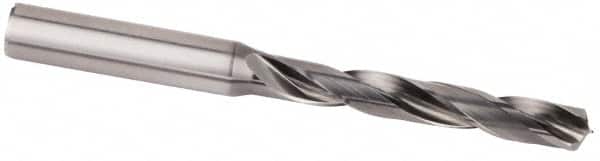

Kennametal - 3mm 135° Spiral Flute Solid Carbide Taper Length Drill Bit
Item #: 58470089
Brand: Kennametal
Model #: 4053226
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Multilayer Aluminum Chromium (AlCr) is a blended coating for high performance applications. It is extremely heat and wear resistant and used in cast iron applications due to its high hot hardness.
Spiral flutes are constructed with a higher flute angle to remove chips more easily.
| Product Specifications | |
|---|---|
| Drill Bit Size (mm) | 3.00 |
| Drill Bit Size (Decimal Inch) | 0.1181 |
| Drill Point Angle | 135 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | Multilayer AlCr |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Through Coolant | Yes |
| Point Type | Standard |
| Flute Length (Decimal Inch) | 1.5748 |
| Flute Length (mm) | 40.00 |
| Overall Length (mm) | 78.00 |
| Overall Length (Decimal Inch) | 3.0709 |
| Spiral Type | Regular Spiral |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Flute Length x Diameter Ratio | 8xD |
| Maximum Drilling Depth (mm) | 33.00 |
| Maximum Drilling Depth (Decimal Inch) | 1.2992 |
| Shank Length (mm) | 36 |
| Shank Length (Decimal Inch) | 1.4173 |
| Drill Point Length (mm) | 0.87 |
| Drill Point Length (Decimal Inch) | 0.0341 |
| Web Configuration | Tapered |
| Drill Bit Diameter Tolerance (mm) | 0.002 to 0.012 |
| Drill Bit Diameter Tolerance (Decimal Inch) | +0.0002 to +0.0006 |
| Specification Number | DIN 6535 |
| Material Grade | KCK10 |
| Series/List | B256A-YPC |
