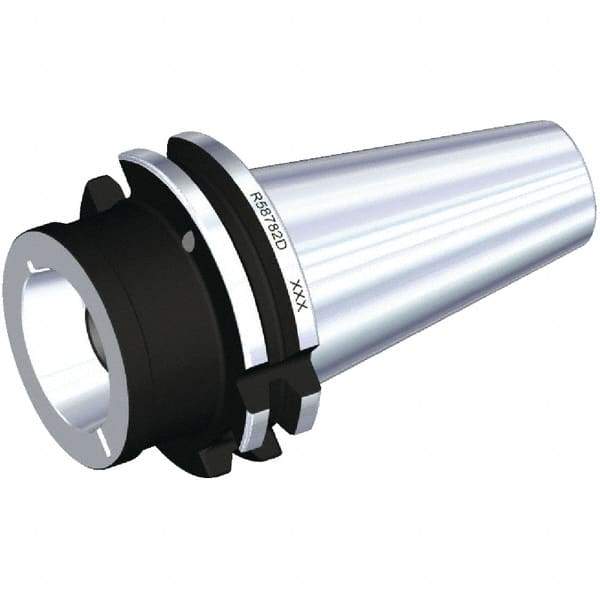

Kennametal - DV50 Outside Taper, KR50 Inside Taper, DV to KR Taper Adapter - 40mm Projection, 65mm Nose Diam, 141.6mm OAL, Through Coolant
Item #: 06995146
Brand: Kennametal
Model #: 1191971
Exact Tooling IR#: 04
Features and Benefits
Taper adapters are used for holding a tapered shank or toolholder.
| Product Specifications | |
|---|---|
| Type | Taper Adapter |
| Taper Adapter Type | DV to KR |
| Outside Taper Size | DV50 |
| Inside Taper Size | KR50 |
| Projection (Decimal Inch) | 1.5748 |
| Projection (mm) | 40.00 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 2.5591 |
| Nose Diameter (mm) | 65.00 |
| Overall Length (mm) | 141.60 |
| Overall Length (Decimal Inch) | 5.5748 |
| Drawbar Thread Size | M24 |
