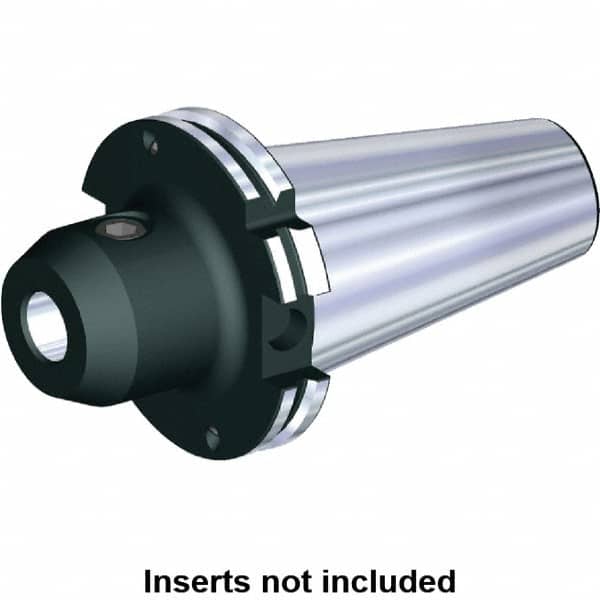

Kennametal - DV50 Taper Shank 50mm Hole End Mill Holder/Adapter - 100mm Nose Diam, 120mm Projection, M24 Drawbar, Through-Spindle & DIN Flange Coolant
Item #: 06994537
Brand: Kennametal
Model #: 1264125
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | DV50 |
| Hole Diameter (mm) | 50.00 |
| Nose Diameter (mm) | 100.00 |
| Projection (mm) | 120.00 |
| Projection (Decimal Inch) | 4.7244 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 85.00 |
| Overall Length (Decimal Inch) | 8.7244 |
| Overall Length (mm) | 221.60 |
| Balanced to (RPM) | 10000 |
| Coolant Type | Through-Spindle & DIN Flange |
| Drawbar Thread Size | M24 |
