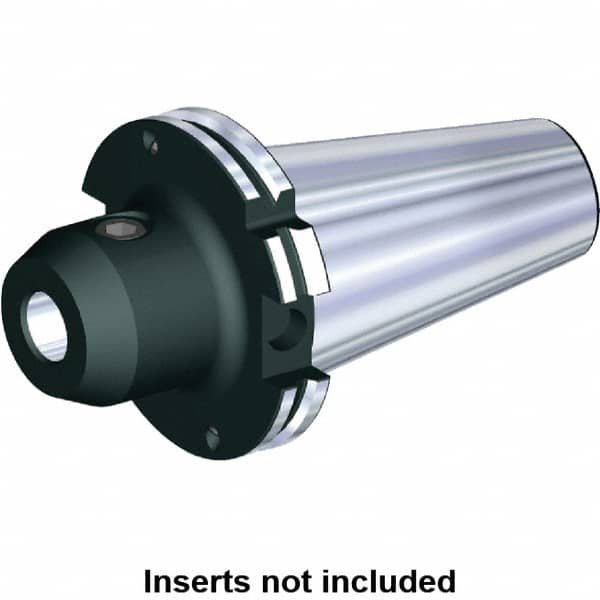

Kennametal - DV50 Taper Shank 20mm Hole End Mill Holder/Adapter - 52mm Nose Diam, 63mm Projection, M24 Drawbar, Through-Spindle & DIN Flange Coolant
Item #: 06994511
Brand: Kennametal
Model #: 1264107
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | DV50 |
| Hole Diameter (mm) | 20.00 |
| Nose Diameter (mm) | 52.00 |
| Projection (mm) | 63.00 |
| Projection (Decimal Inch) | 2.4803 |
| Through Coolant | Yes |
| Clamping Depth (mm) | 55.00 |
| Overall Length (Decimal Inch) | 6.4803 |
| Overall Length (mm) | 164.60 |
| Balanced to (RPM) | 10000 |
| Coolant Type | Through-Spindle & DIN Flange |
| Drawbar Thread Size | M24 |
