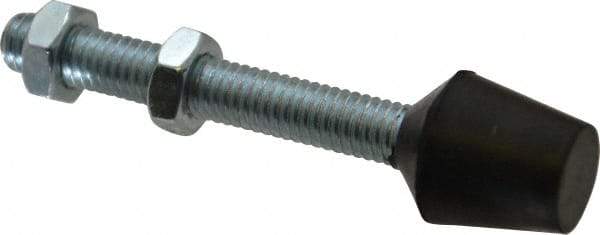

De-Sta-Co - 3/8-16 Carbon Steel Cap Tip Clamp Spindle Assembly - 63.5mm Thread Length, 88.9mm OAL, Flat Tip Cap, 0.88" Tip Surface Diam, Use with Toggle Clamps
Item #: 06993091
Brand: De-Sta-Co
Model #: 527208
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Application | Toggle Clamps |
| Spindle Material | Carbon Steel |
| Thread Size | 3/8-16 |
| Thread Length (Decimal Inch) | 2.5000 |
| Thread Length (mm) | 63.50 |
| Overall Length (mm) | 88.90 |
| Overall Length (Decimal Inch) | 3.5000 |
| Tip Type | Cap |
| Tip Surface Diameter (mm) | 22.35 |
| Tip Surface Diameter (Decimal Inch) | 0.8800 |
| Tip Cap Material | Neoprene |
| Tip Cap Shape | Flat Tip |
| Tip Maximum Diameter (mm) | 16.00 |
| Tip Maximum Diameter (Decimal Inch) | 0.6300 |
| Tip Cap Hardness (Durometer) | 70-80A |
| Nut Height (Decimal Inch) | 0.2200 |
| Nut Height (mm) | 5.59 |
| Minimum Operating Temperature (F) | -22.00 |
| Maximum Operating Temperature (F) | 212.00 |
| Includes | Jam Nuts |
| For Use With | Manual Operated Clamps |
