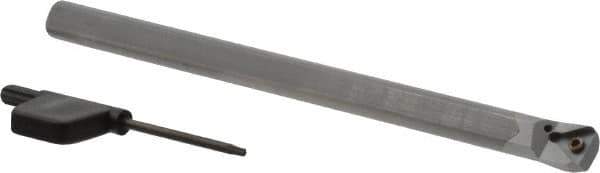

Seco - 1/2" Min Bore Diam, 6" OAL, E-STFC Indexable Boring Bar - TC.T 21.. Insert, Screw Holding Method
Item #: 06967665
Brand: Seco
Model #: 93116
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STFC |
| Series | Screw-On |
| Minimum Bore Diameter (Decimal Inch) | 0.5000 |
| Hand of Holder | Right Hand |
| Overall Length (Decimal Inch) | 6.0000 |
| Insert Compatibility | TC.T 21.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (Decimal Inch) | 0.2500 |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Insert Inscribed Circle (Inch) | 1/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.2500 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TCGT 21.50-F1; TCGT 21.50.5F-AL; TCGT 21.50.5L-UX; TCGT 21.50.5R-UX; TCGT 21.51F-AL; TCGT 21.51L-UX; TCGT 21.51R-UX; TCGT 21.52F-AL; TCMT 21.50.5-F1; TCMT 21.51-F1; TCMT 21.52-F1 |
| Toolholder Material | Carbide |
