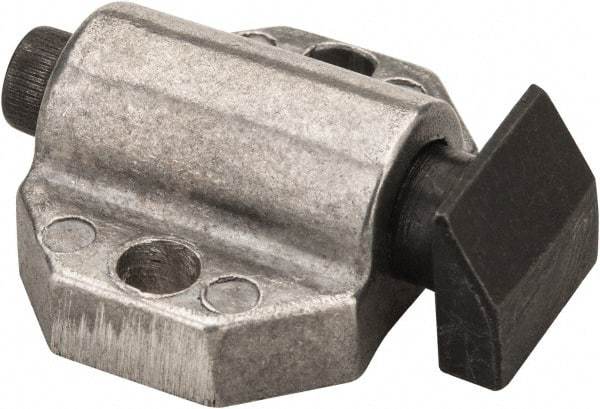

Gibraltar - 7/8" Body Width x 11/16" Body Len, 1/8" Stroke Len, 21/32" Btw Mt Hole Ctrs, 19/32" Btw Mt Hole & Edge, Tangless Square Spring Locating Stop - 10 Lb Mid End Force, 3/8" Stop Head Width x 3/8" Stop Head Height
Item #: 06853105
Brand: Gibraltar
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Stop Head Width (Inch) | 3/8 |
| Stop Head Width (Decimal Inch) | 0.3750 |
| Stroke Length (Decimal Inch) | 0.1250 |
| Stroke Length (Inch) | 1/8 |
| Base Width (Inch) | 7/8 |
| Body Length (Inch) | 11/16 |
| Body Length (Decimal Inch) | 0.6875 |
| Stop Head Height (Inch) | 3/8 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.6563 |
| Distance Between Mount Hole Centers (Inch) | 21/32 |
| Tang Profile | Tangless |
| Middle End Force (Lb.) | 10.00 |
| Body Width (Inch) | 7/8 |
| Body Width (Decimal Inch) | 0.8750 |
| Distance Betw. Button & Bottom Edge (Decimal Inch) | 0.2188 |
| Distance Betw. Button & Bottom Edge (Inch) | 7/32 |
| Distance Between Mount Hole & Edge (Inch) | 19/32 |
| Mounting Slot Length (Decimal Inch) | 0.1280 |
| Mounting Slot Width (Decimal Inch) | 0.1280 |
| Base Thickness (Inch) | 3/16 |
| Base Thickness (Decimal Inch) | 0.1875 |
| Body Material | Aluminum |
