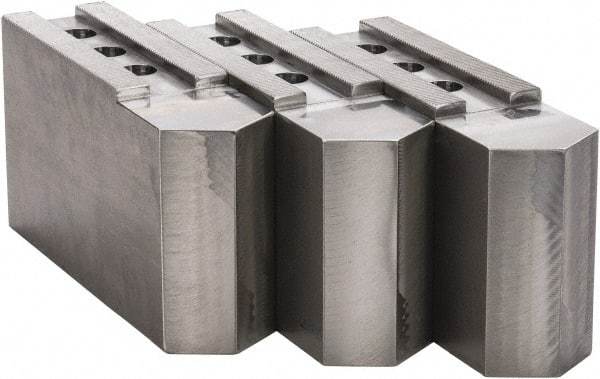

H & R Manufacturing - 16 to 20" Chuck Capacity, 3/32 x 90° Serrated Attachment, Square Soft Lathe Chuck Jaw - 3 Jaws, Steel, 1-9/16" Btw Mount Hole Ctrs, 9" Long x 2-1/2" Wide x 5" High, 1" Groove
Item #: 06829469
Brand: H & R Manufacturing
Model #: HR-42-16-5-OP
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | 3/32" x 90 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 20 |
| Minimum Compatible Chuck Diameter (Inch) | 16 |
| Overall Height (Inch) | 5 |
| Groove Width (Decimal Inch) | 1.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.5620 |
| Jaw End Shape | Pointed |
| Fastener Size (Inch) | 3/4 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 2-1/2 |
| Overall Length (Inch) | 9 |
| Material Grade | 1018 |
