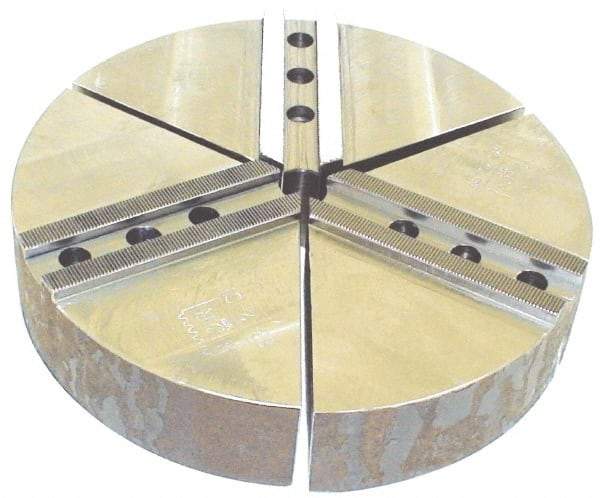

H & R Manufacturing - 15" Chuck Capacity, 1.5mm x 60° Serrated Attachment, Round Soft Lathe Chuck Jaw - 3 Jaws, Cast Iron, 1.69" Btw Mount Hole Ctrs, 7-1/2" Long x 15" Wide x 4" High, 1" Groove, 20mm Fastener
Item #: 06829402
Brand: H & R Manufacturing
Model #: HR-115-4-CI
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Round |
| Material | Cast Iron |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 15 |
| Minimum Compatible Chuck Diameter (Inch) | 15 |
| Overall Height (Inch) | 4 |
| Groove Width (Decimal Inch) | 1.0000 |
| Distance Between Mount Hole Centers (Decimal Inch) | 1.6900 |
| Jaw End Shape | Square |
| Fastener Size (mm) | 20.00 |
| Number of Jaws | 3 |
| Overall Width/Diameter (Inch) | 15 |
| Overall Length (Inch) | 7-1/2 |
